NS DAC0808LCN IC CONVERTER D/A 8BIT 16-DIP
| Part number | Brand | Date | QTY | Package | Remarks |
| DAC0808LCN | NS | 13+ROHS | 7500 | DIP-16 |
Original have in stock |
Features
Relative accuracy:g0.19% error maximum (DAC0808)
Full scale current match:g1 LSB typ
7 and 6-bit accuracy available (DAC0807, DAC0806)
Fast settling time: 150 ns typ
Noninverting digital inputs are TTL and CMOS compatible
High speed multiplying input slew rate: 8 mA/ms
Power supply voltage range:g4.5V tog18V
Low power consumption: 33 mW@g5V
Datasheet
| Datasheets | DAC0808LCN  |
|---|---|
| Standard Package | 25 |
| Category | Integrated Circuits (ICs) |
| Family | Data Acquisition - Digital to Analog Converters (DAC) |
| Series | - |
| Packaging | Tube |
| Settling Time | 150ns |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Number of Converters | 1 |
| Voltage Supply Source | Single Supply |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Number of Outputs and Type | 1 Current, Unipolar |

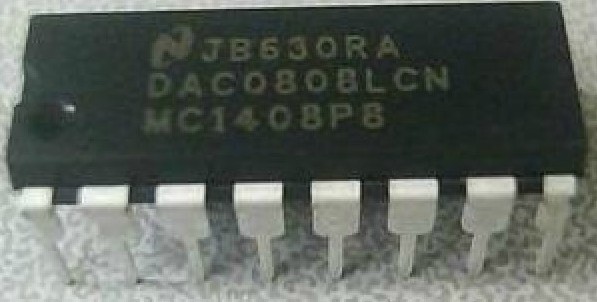

Picture:
