MAXIM MAX4451ESA IC OPAMP VFB 210MHZ RRO 8SOIC
| Part number | Brand | Date | QTY | Package | Remarks |
| MAX4451ESA | MAXIM | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Features:
Ultra-Small SC70-5, SOT23-5, and SOT23-8 Packages
Low Cost
High Speed
210MHz -3dB Bandwidth
55MHz 0.1dB Gain Flatness
485V/µs Slew Rate
Single +4.5V to +11V Operation
Rail-to-Rail Outputs
Input Common-Mode Range Extends Beyond VEE
Low Differential Gain/Phase: 0.02%/0.08°
Low Distortion at 5MHz
-65dBc SFDR
-63dB Total Harmonic Distortion
Applications:
Set-Top Boxes
Surveillance Video Systems
Battery-Powered Instruments
Video Line Driver
Analog-to-Digital Converter Interface
CCD Imaging Systems
Video Routing and Switching Systems
Digital Cameras
Datasheet:
| Datasheets | MAX4451ESA  |
|---|---|
| Packaging | Tape & Reel (TR) |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 485 V/µs |
| Gain Bandwidth Product | - |
| -3db Bandwidth | 210MHz |
| Current - Input Bias | 6.5µA |
| Voltage - Input Offset | 4mV |
| Current - Supply | 6.5mA |
| Current - Output / Channel | 70mA |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 11 V, ±2.25 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |

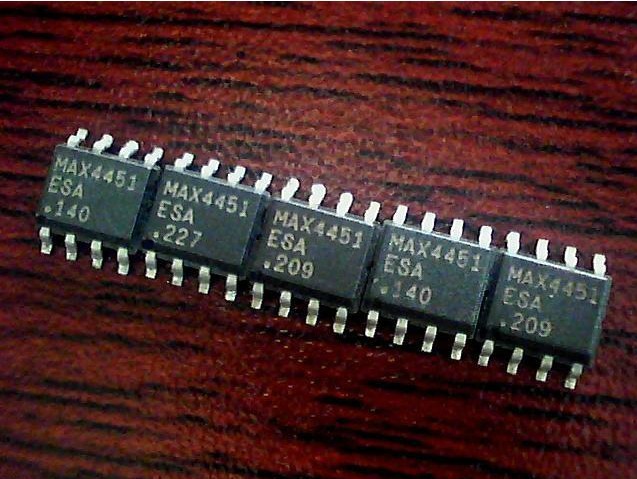

Picture:
