TI TPS61161DRVR IC LED DRIVER WHITE BCKLGT 6SON
| Part number | Brand | Date | QTY | Package | Remarks |
| TPS61161DRVR | TI | 14+ROHS | 7500 | SON-6 |
Original have in stock |
Features:
2.7V to 18V Input Voltage Range
26V Open LED Protection (TPS61160)
38V Open LED Protection (TPS61161)
200mV Reference Voltage With ±2% Accuracy
Flexible Digital and PWM Brightness Control
Built-in Soft Start
Up to 90% Efficiency
2mm × 2mm × 0.8mm 6-pin QFN Package With Thermal Pad
APPLICATIONS:
Cellular Phones
Portable Media Players
Ultra Mobile Devices
GPS Receivers White LED Backlighting for Media Form Factor Display
Datasheet:
| Datasheets | TPS61161DRVR  |
|---|---|
| Packaging | Cut Tape (CT) |
| Constant Current | - |
| Constant Voltage | - |
| Topology | PWM, Step-Up (Boost) |
| Number of Outputs | 1 |
| Internal Driver | Yes |
| Type - Primary | Backlight |
| Type - Secondary | White LED |
| Frequency | 500kHz ~ 700kHz |
| Voltage - Supply | 2.7 V ~ 18 V |
| Voltage - Output | 38V |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (2x2) |
| Operating Temperature | -40°C ~ 85°C |

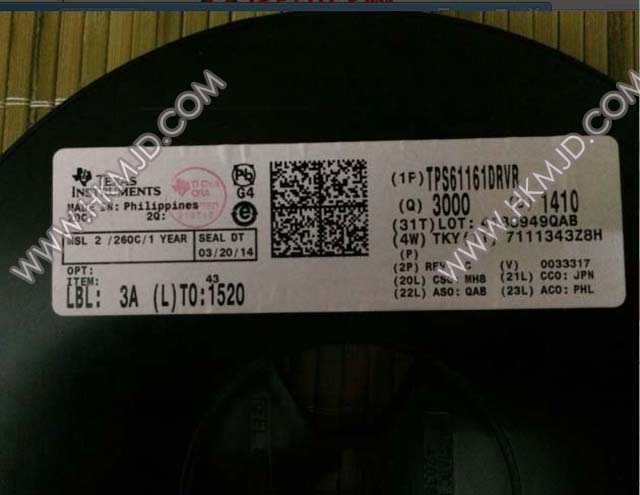

Picture:
