TI SMJ320C31GFAM40 32-BIT, 40 MHz, OTHER DSP, CPGA141
| Part number | Brand | Date | QTY | Package | Remarks |
| SMJ320C31GFAM40 | TI | 14+ROHS | 7500 | PGA |
Original have in stock |
PDF datasheet:
Processed to MIL-PRF-38535 (QML)
Operating Temperature Ranges:
Military (M) −55°C to 125°C
Special (S) −55°C to 105°C
SMD Approval
High-Performance Floating-Point Digital
Signal Processor (DSP):
SMJ320C31-60 (5 V)
33-ns Instruction Cycle Time
330 Million Operations Per Second(MOPS), 60 Million Floating-Point
Operations Per Second (MFLOPS),
30 Million Instructions Per Second(MIPS)
SMJ320C31-50 (5 V)
40-ns Instruction Cycle Time
275 MOPS, 50 MFLOPS, 25 MIPS
SMJ320C31-40 (5 V)
50-ns Instruction Cycle Time
220 MOPS, 40 MFLOPS, 20 MIPS
SMJ320LC31-40 (3.3 V)
50-ns Instruction Cycle Time
220 MOPS, 40 MFLOPS, 20 MIPS
SMQ320LC31-40 (3.3 V)
50-ns Instruction Cycle Time
220 MOPS, 40 MFLOPS, 20 MIPS
SPECIFICATIONS：
| Mfr Package Description | CERAMIC, PGA-141 |
| Status | ACTIVE |
| Technology | CMOS |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY, SHRINK PITCH |
| Terminal Form | PIN/PEG |
| Terminal Pitch | 1.27 mm |
| Terminal Finish | NOT SPECIFIED |
| Terminal Position | PERPENDICULAR |
| Number of Functions | 1 |
| Number of Terminals | 141 |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Temperature Grade | MILITARY |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Address Bus Width | 24 |
| Barrel Shifter | Yes |
| Clock Freq-Max (fclk) | 40 MHz |
| External Data Bus Width | 32 |
| Floating Point Unit | Yes |
| Internal Bus Architecture | MULTIPLE |
| Low Power Mode | Yes |
| Microprocess IC Type | OTHER DSP |
| Number of Bits in Data ALU | 40 |

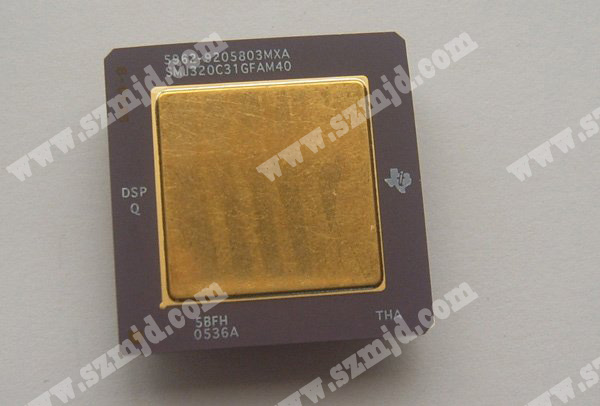

Picture:
