TI AM26C32CDR AM26C32 IC QUAD DIFF LINE RCVR 16-SOIC
| Part number | Brand | Date | QTY | Package | Remarks |
| AM26C32CDR | TI | 14+ROHS | 7500 | SOP-16 |
Original have in stock |
Feature
Meets or Exceeds the Requirements of
ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU
Recommendation V.10 and V.11
Low Power, ICC = 10 mA Typ
±7-V Common-Mode Range With ±200-mV
Sensitivity
Input Hysteresis . . . 60 mV Typ
tpd = 17 ns Typ
Operates From a Single 5-V Supply
3-State Outputs
Input Fail-Safe Circuitry
Improved Replacements for AM26LS32
Available in Q-Temp Automotive
− High Reliability Automotive Applications
− Configuration Control/Print Support
− Qualification to Automotive Standards
Specification
| Datasheets | AM26C32CDR   |
|---|---|
| Type | Receiver |
| Protocol | RS422, RS423 |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Receiver Hysteresis | 60mV |
| Data Rate | - |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |

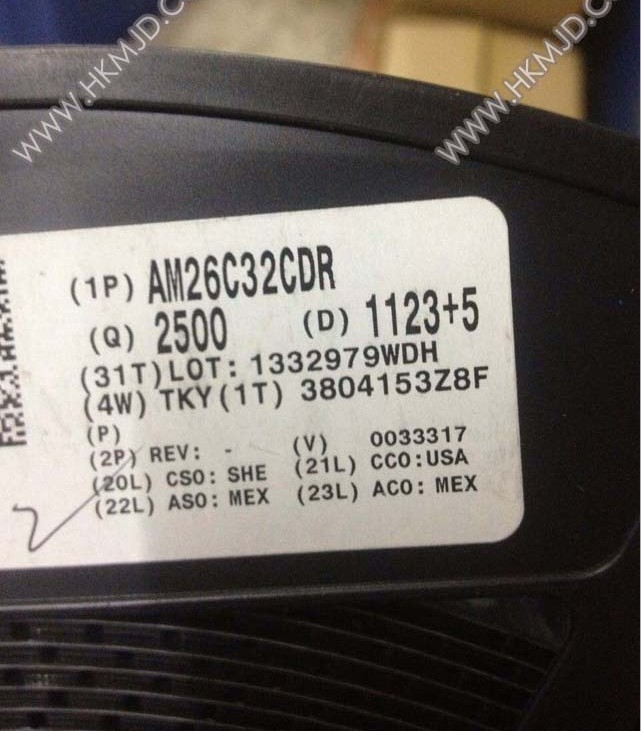

Picture:
