NS DS90CF386MTDX DS90CF386 QUAD LINE RECEIVER, PDSO56
| Part number | Brand | Date | QTY | Package | Remarks |
| DS90CF386MTDX | NS | 14+ROHS | 7500 | TSSOP-56 |
Original have in stock |
Features
20 to 85 MHz shift clock support
Rx power consumption <142 mW (typ) @85MHz Grayscale
Rx Power-down mode <1.44 mW (max)
ESD rating >7 kV (HBM), >700V (EIAJ)
Supports VGA, SVGA, XGA and Single Pixel SXGA.
PLL requires no external components
Compatible with TIA/EIA-644 LVDS standard
Low profile 56-lead or 48-lead TSSOP package
DS90CF386 also available in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package
| Datasheet | DS90CF386MTDX  |
|---|---|
| Applications | - |
| Interface | - |
| Voltage - Supply | 3 V ~ 3.6 V |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| Mounting Type | Surface Mount |

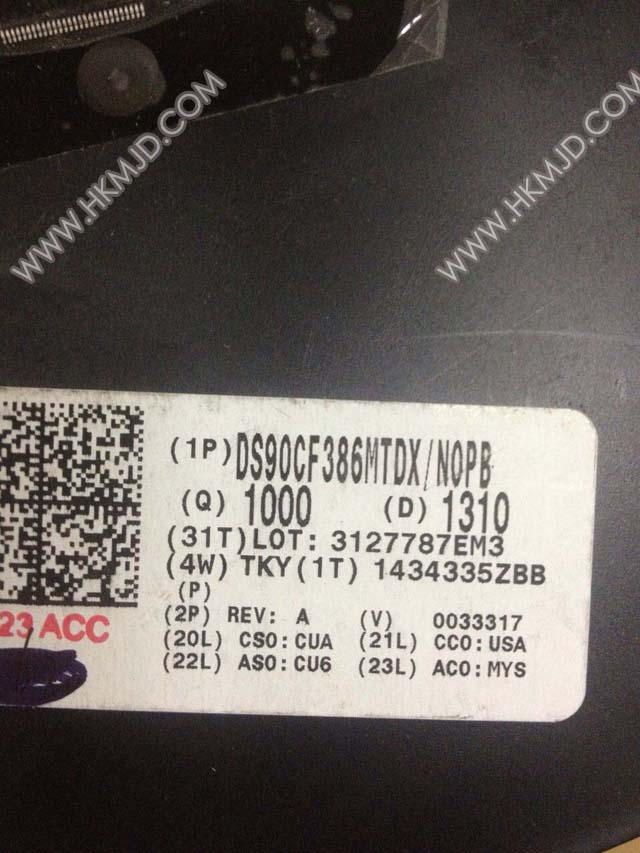

Picture:
