ST USBUF01W6 EMI filter and line termination for USB upstream ports
| Part number | Brand | Date | QTY | Package | Remarks |
| USBUF01W6 | ST | 14+ROHS | 7500 | SOT-363 |
Original have in stock |
Features
■ Monolithic device with recommended line termination for USB upstream ports
■ Integrated Rt series termination and Ct bypassing capacitors.
■ Integrated ESD protection
■ Small package size
APPLICATIONS
EMI Filter and line termination for USB upstream
ports on:
- USB Hubs
- PC peripherals
Specification
| Datasheets | USBUF01W6  |
|---|---|
| Type | Low Pass |
| Technology | RC (Pi) |
| Number of Channels | 2 |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | 33 |
| Current | - |
| Values | R = 33 Ohms, C = 47pF |
| ESD Protection | Yes |
| Filter Order | 2nd |
| Applications | USB |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height | 0.043" (1.10mm) |
| Operating Temperature | -40°C ~ 70°C |

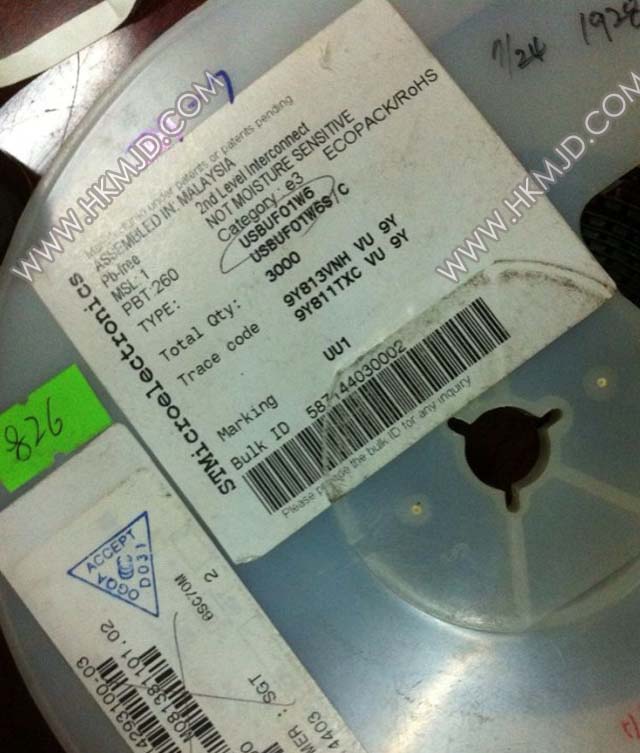

Picture：
