ST VNS1NV0413TR VNS1NV0413 MOSFET POWER AUTOPROTECT 8-SOIC
| Part number | Brand | Date | QTY | Package | Remarks |
| VNS1NV0413TR | ST | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Features
LINEAR CURRENT LIMITATION
THERMAL SHUT DOWN
SHORT CIRCUIT PROTECTION
INTEGRATED CLAMP
LOW CURRENT DRAWN FROM INPUT PIN
DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
ESD PROTECTION
DIRECT ACCESS TO THE GATE OF THE
POWER MOSFET (ANALOG DRIVING)
COMPATIBLE WITH STANDARD POWER MOSFET
Specification
| Datasheets | VNS1NV0413TR  |
|---|---|
| Type | Low Side |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| On-State Resistance | 250 mOhm |
| Current - Output / Channel | 1.7A |
| Current - Peak Output | 3.5A |
| Voltage - Supply | - |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |

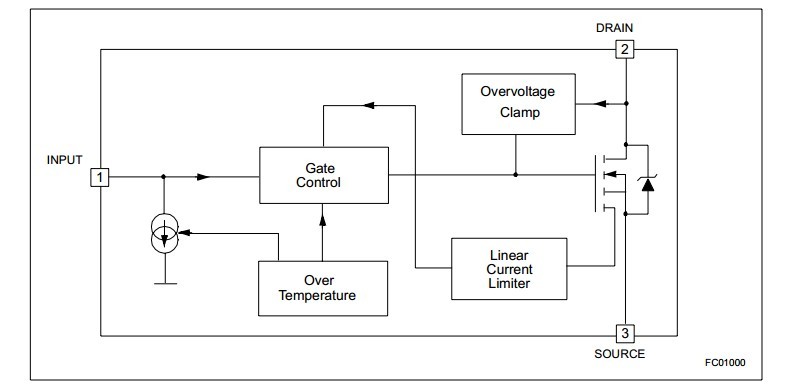

BLOCK DIAGRAM
