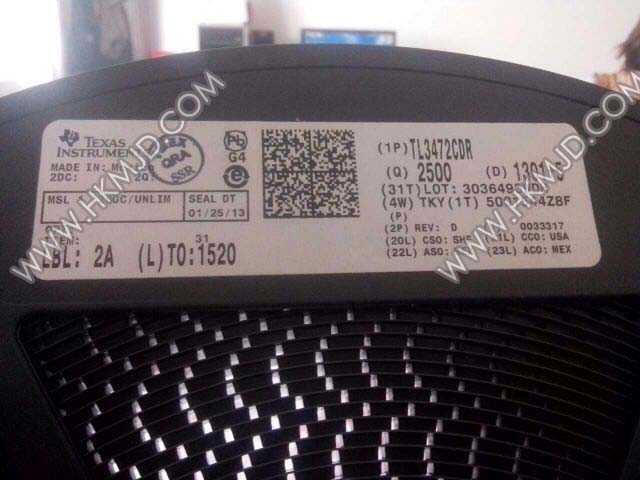

TI TL3472CDR TL3472 SINGLE-SUPPLY OPERATIONAL AMPLIFIER
| Part number | Brand | Date | QTY | Package | Remarks |
| TL3472CDR | TI | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Feature
Wide Gain-Bandwidth Product . . . 4 MHz
High Slew Rate . . . 13 V/μs
Fast Settling Time . . . 1.1 μs to 0.1%
Wide-Range Single-Supply Operation . . . 4 V to 36 V
Wide Input Common-Mode Range Includes Ground (VCC−)
Low Total Harmonic Distortion . . . 0.02%
Large-Capacitance Drive Capability . . . 10,000 pF
Output Short-Circuit Protection
Specification
| Datasheets | TL3472CDR |
|---|---|
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 13 V/µs |
| Gain Bandwidth Product | 4MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 100nA |
| Voltage - Input Offset | 1mV |
| Current - Supply | 3.5mA |
| Current - Output / Channel | 34mA |
| Voltage - Supply, Single/Dual (±) | 4 V ~ 36 V, ±2 V ~ 18 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
