NXP UBA2074AT UBA2074 DRIVER FULL BRIDGE 28SOIC New and original have in stock
Brand：NXP
Package：SOP-28
Remarks：New and original have in stock
Features：
Suitable for operating in a very wide inverter supply voltage range (up to 550 V DC forSO28 package, up to 225 V for SSOP28 package)
Wide IC supply voltage range (9 V to 30 V DC)
Suitable for synchronizing multiple inverters to a single operating frequency with equallamp current phase
Adjustable maximum fault timing
Integrated level-shifters
Integrated bootstrap diodes
Lamp current control
Over-voltage control
Over-current protection
Ignition failure detection
Hard-switching control (not in the A-version)
Arcing detection
Brightness level adjustment through PWM dimming
Integrated PWM generator
Specification：
| Type | CCFL/EEFL Controller |
|---|---|
| Frequency | 43kHz ~ 46.6kHz |
| Voltage - Supply | 9 V ~ 30 V |
| Current - Supply | 5mA |
| Current - Output Source/Sink | - |
| Dimming | Yes |
| Operating Temperature | -25°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Drawing Number | 568; SOT136-1; ; 28 |
| Mfr Reel Diameter | 13" (330mm) |
| Mfr Reel Tape Material | Plastic |
| Mfr Reel Tape Width | 24mm |
| Supplier Device Package | 28-SO |

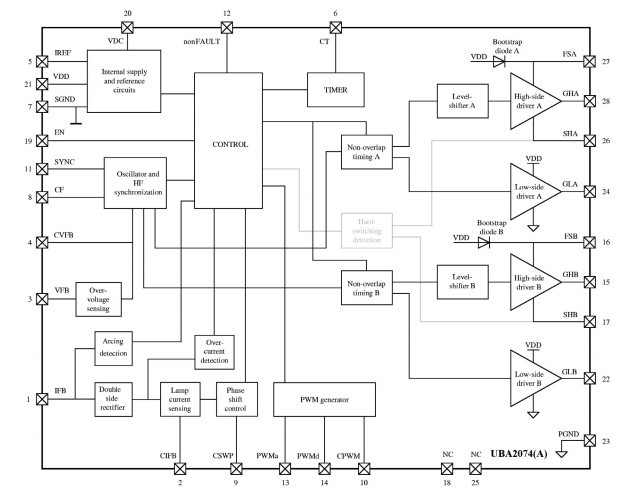

Block diagram：

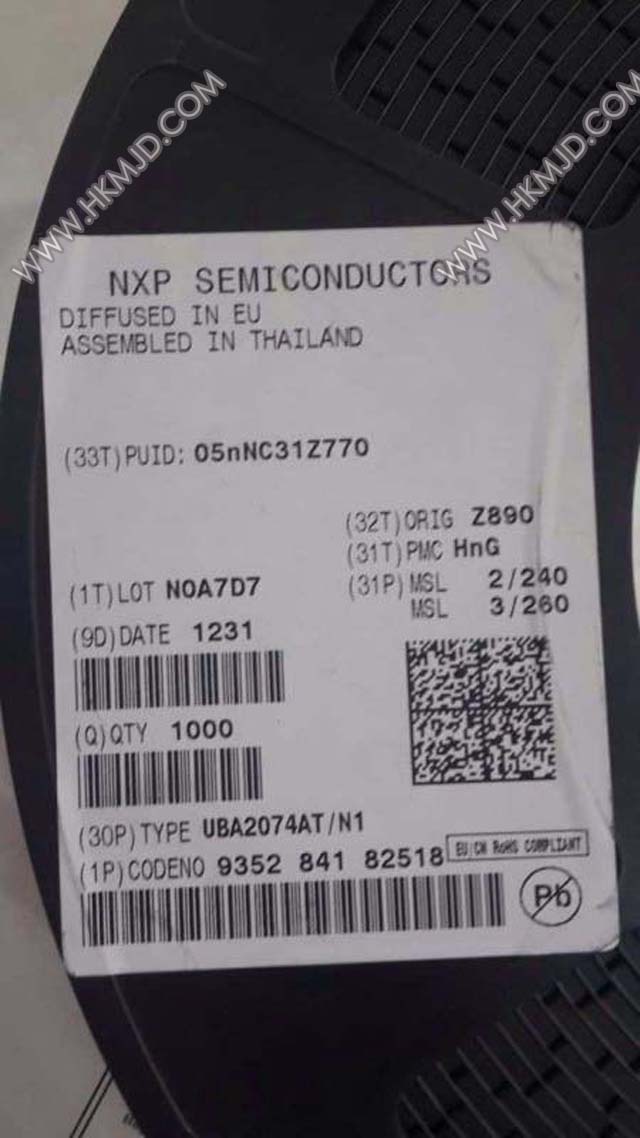

Picture：
