NS LMV981TLX LMV981 Operational Amplifiers
| Part number | Brand | Date | QTY | Package | Remarks |

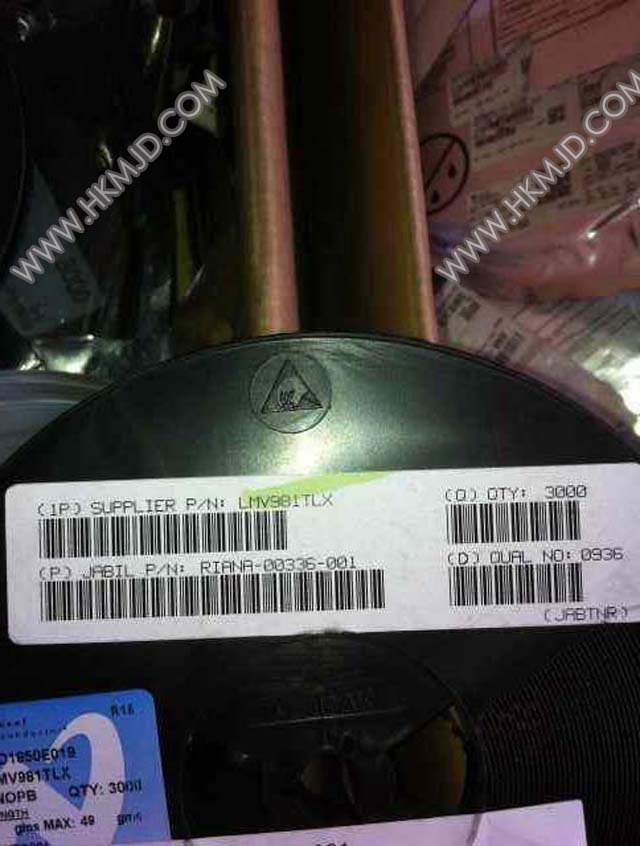

| LMV981TLX | NS | 14+ROHS | 7500 | DSBGA-6 |
Original have in stock |
Features
1.8-V, 2.7-V, and 5-V Specifications
Rail-to-Rail Output Swing
600- Load . . . 80 mV From Rail
2-k Load . . . 30 mV From Rail
VICR . . . 200 mV Beyond Rails
Gain Bandwidth . . . 1.4 MHz
Supply Current . . . 100 µA/Amplifier
Max VIO . . . 4 mV
Turn-On Time From Shutdown . . . 8.4 µs
Space Savings Packages:
LMV981: SOT-23-6, SC-70, and QFN
LMV982: MSOP and VSSOP
Applications:
Industrial (Utility/Energy Metering)
Automotive
Communications (Optical Telecom, Data/Voice Cable Modems)
Consumer Electronics (PDAs, PCs, CDR/W, Portable Audio)
Supply-Current Monitoring
Battery Monitoring
Specification
| Datasheets | LMV981TLX |
|---|---|
| Packaging | Tape & Reel (TR) |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.42 V/µs |
| Gain Bandwidth Product | 1.5MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 14nA |
| Voltage - Input Offset | 1mV |
| Current - Supply | 116µA |
| Current - Output / Channel | 100mA |
| Voltage - Supply, Single/Dual (±) | 1.8 V ~ 5 V, ±0.9 V ~ 2.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA |

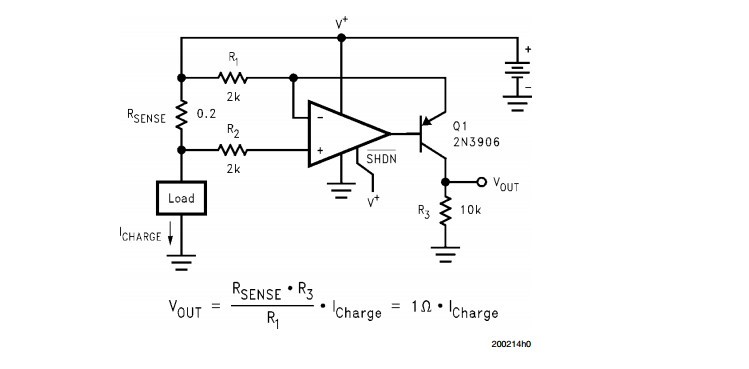

Typical Application
