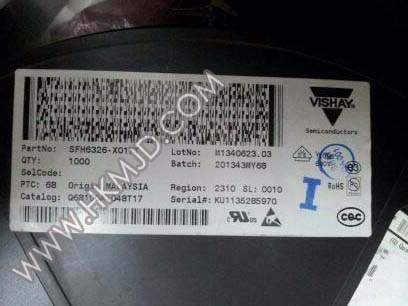

Vishay SFH6326 SFH6326-X017T High Speed Optocoupler, Dual Channel, 1 MBd, Transistor Output
| Part number | Brand | Date | QTY | Package | Remarks |
| SFH6326 | Vishay | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Features
• Isolation Test Voltage: 5300 VRMS
• TTL Compatible
• Bit Rates: 1.0 MBit/s
• High Common-mode Transient Immunity
• Bandwidth 2.0 MHz
• Open-Collector Output
Agency Approvals
• UL - File No. E52744 System Code H or J
| Datasheets | SFH6326 |
|---|---|
| Number of Channels | 2 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 200ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 25V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Current - DC Forward (If) (Max) | 25mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
