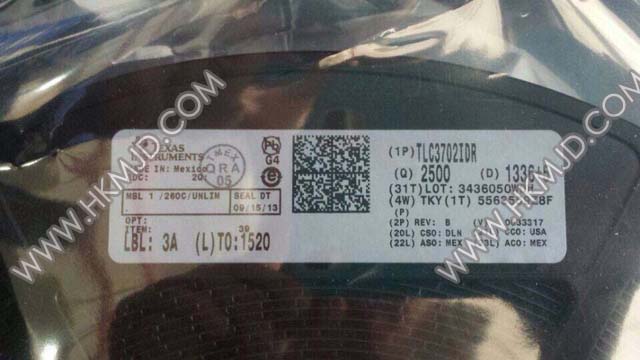

TI TLC3702IDR TLC3702 DUAL MICROPOWER LinCMOS VOLTAGE COMPARATORS
Brand ：TI
Part number ：TLC3702IDR TLC3702
Package：SOP-8
PDF Datasheet：
| Type | General Purpose |
|---|---|
| Number of Elements | 2 |
| Output Type | CMOS, Push-Pull, TTL |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 16 V |
| Voltage - Input Offset (Max) | 5mV @ 10V |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 65µA |
| CMRR, PSRR (Typ) | 84dB CMRR |
| Propagation Delay (Max) | 4.5µs |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
Feature
Push-Pull CMOS Output Drives Capacitive Loads Without Pullup Resistor, IO = ± 8 mA
Very Low Power. . . 100 μW Typ at 5 V
Fast Response Time ...tPLH = 2.7 μs Typ With 5-mV Overdrive
Single-Supply Operation . . . 3 V to 16 V TLC3702M . . . 4 V to 16 V
On-Chip ESD Protection
