Realtek RTL8201EL RTL8201 Single-Chip/Port 10/100Mbps Ethernet PHYceiver with Auto MDIX
| Part number | Brand | Date | QTY | Package | Remarks |

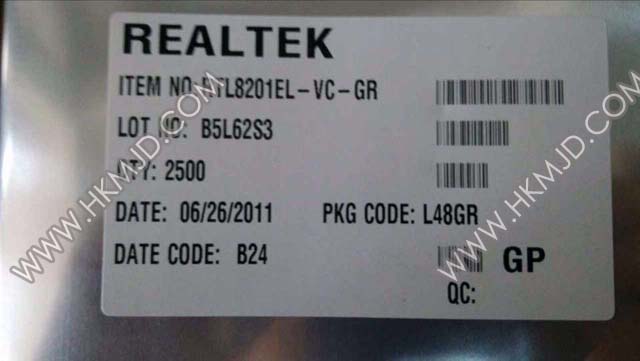

| RTL8201EL | Realtek | 14+ROHS | 7500 | LQFP-48 |
Original have in stock |
Features
Supports MII and 7-wire SNI (Serial Network Interface)
Supports RMII mode (RTL8201E(L)-VC and RTL8201E-VCR only)
10/100Mbps operation
Twisted pair or fiber mode output
Auto-Negotiation
Supports power down mode
Supports operation under Link Down Power Saving mode
Supports Base Line Wander (BLW) compensation
Supports auto MDIX
Supports repeater mode
Automatic Polarity Correction
Supports Interrupt function (RTL8201EL-VC only)
Adaptive Equalization
Network status LEDs
Flow control support
25MHz crystal/oscillator as clock source
IEEE 802.3/802.3u compliant
Low power supply, 1.2V, and 3.3V; 1.2V is generated by an internal regulator
0.11µm CMOS process
Packages:
32-pin QFN ‘Green’ package (RTL8201E)
48-pin LQFP ‘Green’ package (RTL8201EL)

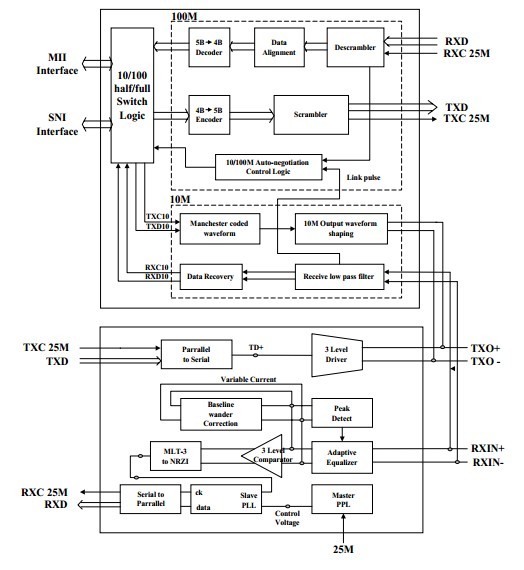

Block Diagram
