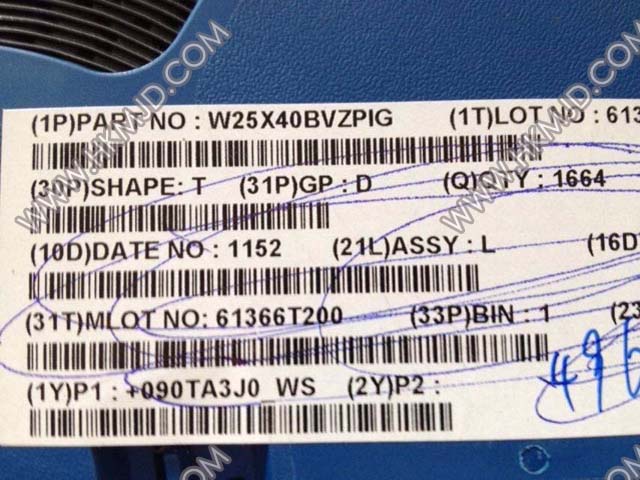

Winbond W25X40BVZPIG W25X40 IC FLASH 4MBIT 104MHZ 8WSON
| Part number | Brand | Date | QTY | Package | Remarks |
| W25X40BVZPIG | Winbond | 14+ROHS | 7500 | QFN-8 |
Original have in stock |
FEATURES
Family of Serial Flash Memories
– W25X10BV: 1M-bit/128K-byte (131,072)
– W25X20BV: 2M-bit/256K-byte (262,144)
– W25X40BV: 4M-bit/512K-byte (524,288)
– 256-bytes per programmable page
– Uniform 4KB Sectors, 32KB & 64KB Blocks
SPI with Single / Dual Outputs / Dual I/O
– Clock, Chip Select, Data I/O, Data Out
– Optional Hold function for SPI flexibility
· Data Transfer up to 208M-bits / second
– Clock operation to 104MHz
– Fast Read Dual Output instruction
– Auto-increment Read capability
Efficient “Continuous Read Mode”
– Low Instruction overhead
– Continuous Read
– As few as 8 clocks to address memory
– Allows true XIP (execute in place) operation
Software and Hardware Write Protection
– Write-Protect all or portion of memory
– Enable/Disable protection with /WP pin
– Top or bottom array protection
Flexible Architecture with 4KB sectors
– Sector Erase (4K-bytes)
– Block Erase (32K and 64K-byte)
– Page program up to 256 bytes <1ms
– More than 100,000 erase/write cycles
– More than 20-year retention
Low Power Consumption, Wide Temperature Range
– Single 2.7 to 3.6V supply
– 4mA active current, 1µA Power-down (typ)
– -40° to +85°C operating range
· Space Efficient Packaging
– 8-pin SOIC 150-mil
– 8-pin SOIC 208-mil
– 8-pad WSON 6x5-mm
– 8-pin PDIP 300-mil
| Datasheets | W25X40BVZPIG |
|---|---|
| Format - Memory | FLASH |
| Memory Type | FLASH |
| Memory Size | 4M (512K x 8) |
| Speed | 104MHz |
| Interface | SPI Serial |
| Voltage - Supply | 2.7 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-WDFN Exposed Pad |
