GENESYS GL827L USB 2.0 Single Slot SD/MMC/MS

GENESYS GL827L USB 2.0 Single Slot SD/MMC/MS

Features

USB specification compliance

- Comply with 480Mbps Universal Serial Bus specification rev. 2.0.

- Comply with USB Storage Class specification rev. 1.0.

- Support 1 device address and up to 4 endpoints: Control (0)/ Bulk Read (1)/ Bulk Write (2)/Interrupt (3).

Integrated USB building blocks

- USB2.0 transceiver macro (UTM), Serial Interface Engine (SIE), Build-in power-on reset (POR) and

low-voltage detector (LVD)

Embedded 8051 micro-controller

- Operate @ 60 MHz clock, 12 clocks per instruction cycle

- Embedded 32K Byte mask ROM and internal 256 byte SRAM

- Embedded 2K Byte external SRAM

Secure DigitalTM and MultiMediaCardTM

 - Supports SD specification v1.0 / v1.1 / v2.0

- Supports MMC specification v3.X / v4.0 / v4.1 / v4.2.

- x1 / x4 / x8 data transmission. (For QFN24 up to x4)

- Automatic CRC7 generation for command and CRC7 verification for response on CMD

- Support automatic CRC16 generation and verification on DAT0:7

- In addition to full packet transaction, optional single byte / bit operation on both CMD and DAT line / lines

- Process data in block or byte

Memory StickTM/ Memory Stick PROTM / Memory Stick PRO DuoTM / Memory Stick PRO-HG/ Memory Stick Micro

- Comply with Memory Stick specification: MS 1.43, MSPRO 1.02, MSPRO-HG 1.01 with 4-bit data bus

- Support INS signal

- Support automatic CRC16 generation and verification

On board 12 MHz Crystal driver circuit or 12 MHz Clock input.

On-Chip 5V to 3.3V regulator. No external regulator required.

On-Chip power MOSFETs for supplying flash media card power.

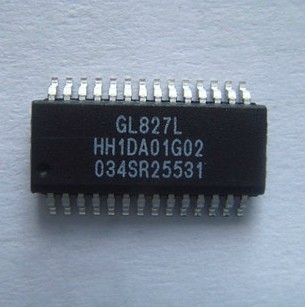

Available in 28-pin SSOP (150mil) package.

Available in 24-pin QFN package.

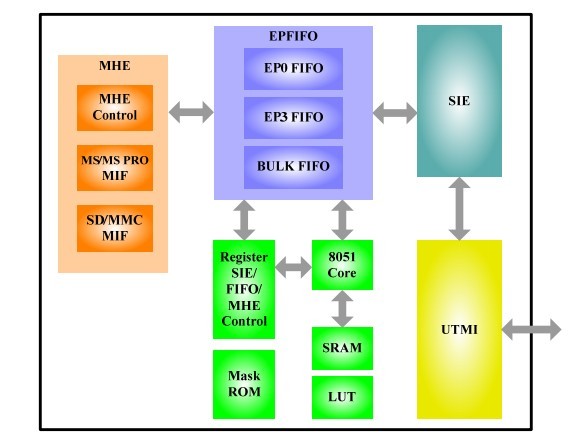

Block Diagram
