INTEL WGCE5039 CE5039 DVB-S Digital Satellite Tuner with RF Bypass

INTEL WGCE5039  CE5039 DVB-S Digital Satellite Tuner with RF Bypass

PDF:

Features

• Direct conversion tuner for quadrature down conversion from L-band to Zero IF

• Symbol rate 1-45 MSps

• Excellent sensitivity <-84.5 dBm at 27.5 MSps

• Independent RF AGC and baseband gain control

• Fifth order baseband filters with bandwidth adjustable from 6 to 43 MHz

• Fully integrated alignment-free low phase noise local oscillator

• Selectable RF Bypass

• I2C compatible control

• 3.3 Volt Supply

• 28 pin 5x5 mm QFN Package

Applications

• DVB-S Free-to-Air Satellite receiver systems

• 8PSK Satellite Receiver Systems

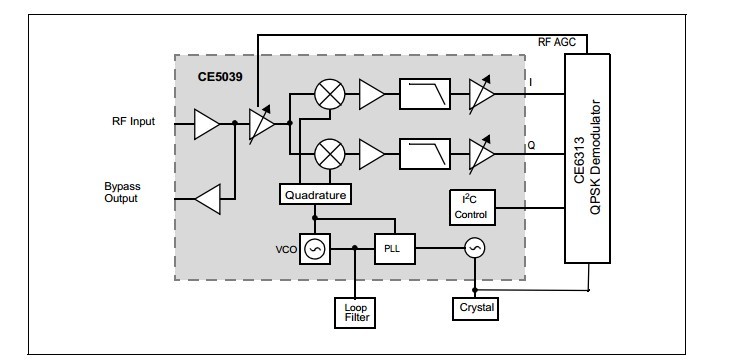

Basic Block Diagram
