BCD AUR9717 AUR9717AGD IC REG BUCK ADJ 1A 10WDFN
| Part number | Brand | Date | QTY | Package | Remarks |

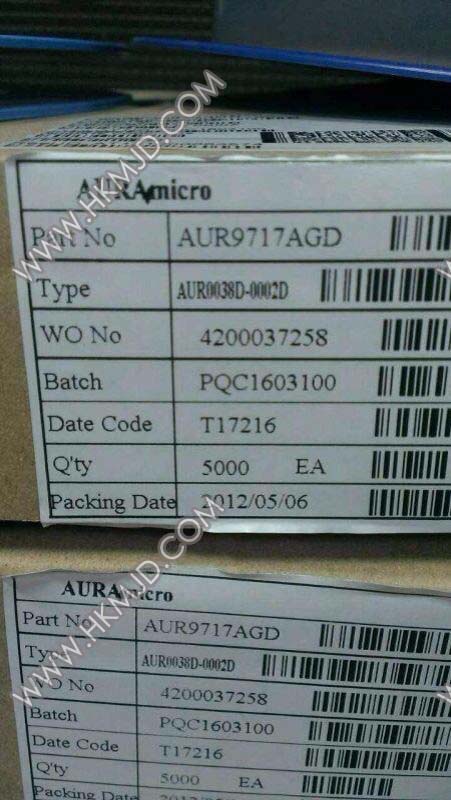

| AUR9717 | BCD | 14+ROHS | 7500 | WDFN-10 |
Original have in stock |
Features
• Dual Channel High Efficiency Buck Power Converter
• Low Quiescent Current
• Output Current: 1A
• Adjustable Output Voltage from 1V to 3.3V
• Wide Operating Voltage Range: 2.5V to 5.5V
• Built-in Power Switchers for Synchronous Rectification with High Efficiency
• Feedback Voltage: 600mV
• 1.5MHz Constant Frequency Operation
• Automatic PWM/LDO Mode Switching Control
• Thermal Shutdown Protection
• Low Drop-out Operation at 100% Duty Cycle
• No Schottky Diode Required
• Internal Input Over Voltage Protection
Applications
• Mobile Phone, Digital Camera and MP3 Player
• Headset, Radio and Other Hand-held Instruments
• Post DC-DC Voltage Regulation
• PDA and Notebook Computer
| Datasheets | AUR9717 |
|---|---|
| Type | Step-Down (Buck) |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Output | 1 V ~ 3.3 V |
| Voltage - Input | 2.5 V ~ 5.5 V |
| PWM Type | Current Mode |
| Frequency - Switching | 1.5MHz |
| Current - Output | 1A |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 80°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
