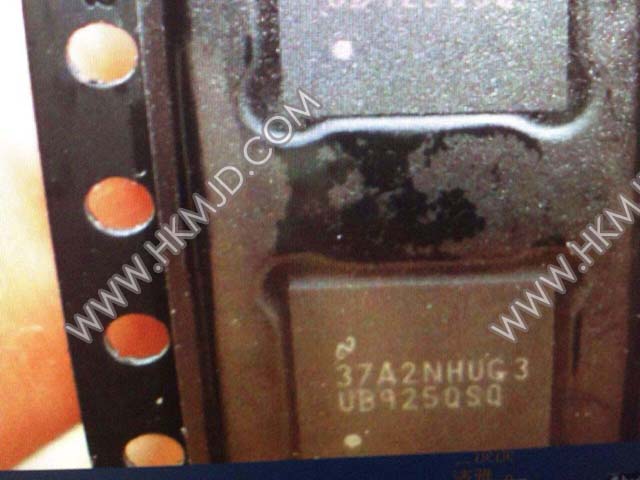

TI DS90UB925QSQ DS90UB925 Bidirectional Control Channel
| Part number | Brand | Date | QTY | Package | Remarks |
| DS90UB925QSQ | TI | 14+ROHS | 7500 | WQFN-48 |
Original have in stock |
Features
● Bidirectional control interface channel interface with I2C
compatible serial control bus
● Supports high definition (720p) digital video format
● RGB888 + VS, HS, DE and I2S audio supported
● Supports two 10–bit camera video streams
● 5 – 85MHz PCLK supported
● Single 3.3V Operation with 1.8V or 3.3V compatible
LVCMOS I/O interface
● AC-coupled STP Interconnect up to 10 meters
● Parallel LVCMOS video inputs
● DC-balanced & scrambled Data w/ Embedded Clock
● Supports repeater application
● Internal pattern generation
● Low power modes minimize power dissipation
● Automotive grade product: AEC-Q100 Grade 2 qualified
● >8kV HBM and ISO 10605 ESD rating
● Backward compatible to FPD-Link II
Applications
● Automotive Display for Navigation
● Rear Seat Entertainment Systems
● Automotive Driver Assistance
● Automotive Megapixel Camera Systems
