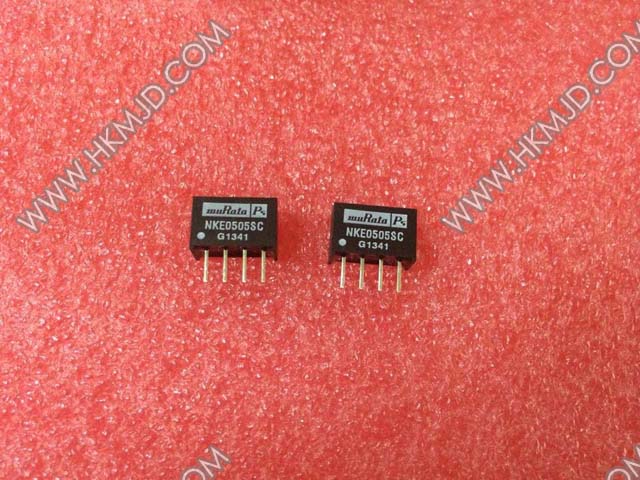

Murata NKE0505SC NKE0505 CONV DC/DC 1W 5VIN 5VOUT SIP SGL
| Part number | Brand | Date | QTY | Package | Remarks |
| NKE0505SC | Murata | 14+ROHS | 7500 | SIP-4 |
Original have in stock |
FEATURES
RoHS Compliant
Sub-Miniature SIP & DIP Styles
3kVDC Isolation
UL Recognised
Wide Temperature performance at full
1 Watt load, –40°C to 85°C
Increased Power Density to 2.09W/cm3
UL 94V-0 Package Material
Footprint at 0.69cm2
Industry Standard Pinout
3.3V, 5V & 12V Input
3.3V, 5V, 9V, 12V and 15V Output
Internal SMD Construction
Fully Encapsulated with Toroidal Magnetics
MTTF up to 2.4 Million hours
Custom Solutions Available
No Electrolytic or Tantalum Capacitors
| Datasheet | NKE0505SC |
|---|---|
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) - Manufacture Series | 1W |
| Voltage - Isolation | 3kV (3000V) |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.45" L x 0.24" W x 0.29" H (11.4mm x 6.1mm x 7.4mm) |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 69% |
| Power (Watts) - Max | 1W |
