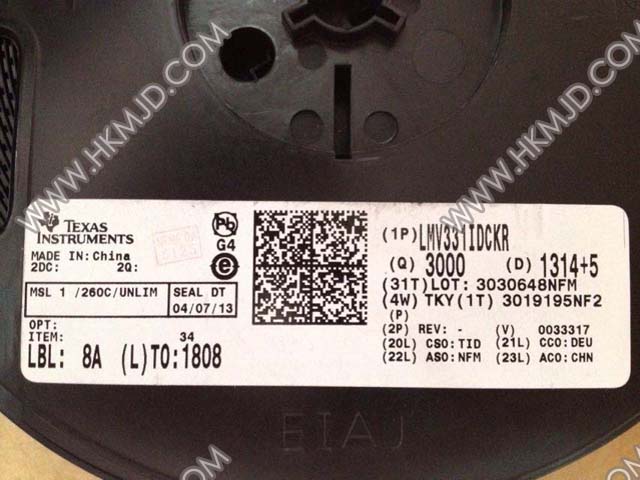

TI LMV331IDCKR LMV331 IC GP LV COMPARATOR SC70-5
| Part number | Brand | Date | QTY | Package | Remarks |
| LMV331IDCKR | TI | 14+ROHS | 7500 | SC70-5 |
Original have in stock |
Features
2.7-V and 5-V Performance
Low Supply Current
LMV331 . . . 130 µA Typ
Input Common-Mode Voltage Range Includes Ground
Low Output Saturation Voltage 200 mV Typical
Open-Collector Output for Maximum Flexibility
| Datasheet | LMV331IDCKR |
|---|---|
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Open Collector |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 5.5 V |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 84mA @ 5V |
| Current - Quiescent (Max) | 150µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 600ns |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-TSSOP (5 Lead), SC-88A, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
