LM10506TMX LM10506 IC BUCK PMU TRPL 34MICRO SMD
| Part number | Brand | Date | QTY | Package | Remarks |
| LM10506TMX | TI | 14+ROHS | 7500 | BGA-34 |
Original have in stock |
Features
■ Three highly efficient programmable buck regulators
— Integrated FETs with low RDSON
— Bucks operate with their phases shifted to reduce the input current ripple and capacitor size
— Programmable Output Voltage via the SPI interface
— Overvoltage and Undervoltage Lockout
— Automatic internal soft start with Power-on reset
— Current overload and thermal shutdown protection
— Bypass mode available on Bucks 1 and 2
— PFM mode for low-load, high-efficiency operation
■ Low-dropout LDO 3.2V, 100 mA
■ SPI-programmable interrupt comparator (2.0V to 4.0V)
■ Alternate Buck VOUTS selectable via H/L logic pins
■ RESET, STANDBY pins
Applications
■ Solid-State Drives

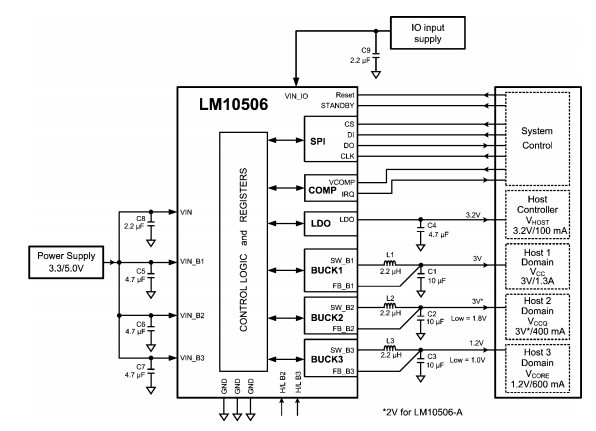

Typical Application Diagram
