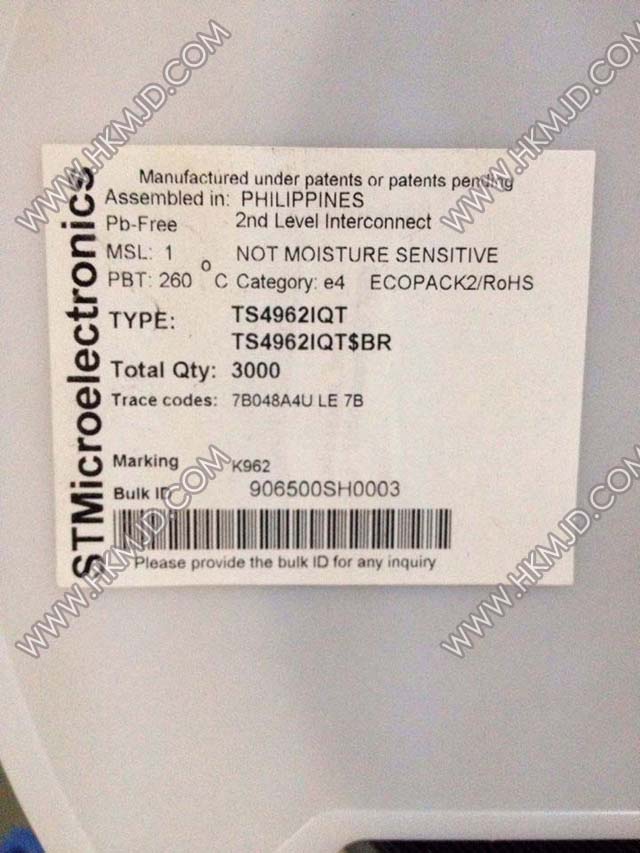

ST TS4962IQT TS4962 IC AMP AUDIO PWR 2.8W MONO 8DFN
| Part number | Brand | Date | QTY | Package | Remarks |
| TS4962IQT | ST | 14+ROHS | 7500 | DFN-8 |
Original have in stock |
Features
■ Operating from VCC=2.4V to 5.5V
■ Standby mode active low
■ Output power: 2.8W into 4Ω and 1.7W into 8Ω with 10% THD+N max and 5V power supply
■ Output power: 2.2W @5V or 0.7W @ 3.0V into 4Ω with 1% THD+N max.
■ Output power: 1.4W @5V or 0.5W @ 3.0V into 8Ω with 1% THD+N max.
■ Adjustable gain via external resistors
■ Low current consumption 2mA @ 3V
■ Efficiency: 88% typ.
■ Signal to noise ratio: 85dB typ.
■ PSRR: 63dB typ. @217Hz with 6dB gain
■ PWM base frequency: 280kHz
■ Low pop & click noise
■ Thermal shutdown protection
■ Available in DFN8 3X3 mm package
| Datasheets | TS4962IQT |
|---|---|
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 2.8W x 1 @ 4 Ohm |
| Voltage - Supply | 2.4 V ~ 5.5 V |
| Features | Depop, Differential Inputs, Standby, Thermal Protection |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (3x3) |
