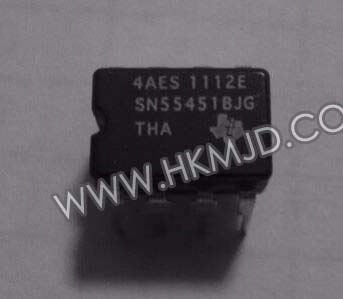

TI SN55451BJG SN55451 DUAL PERIPHERAL DRIVERS
| Part number | Brand | Date | QTY | Package | Remarks |
| SN55451BJG | TI | 14+ROHS | 7500 | CDIP-8 |
Original have in stock |
Features
PERIPHERAL DRIVERS FOR HIGH-CURRENT SWITCHING AT VERY HIGH SPEEDS
Characterized for Use to 300 mA
High-Voltage Outputs
No Output Latch-Up at 20 V (After Conducting 300 mA)
High-Speed Switching
Circuit Flexibility for Varied Applications
TTL-Compatible Diode-Clamped Inputs
Standard Supply Voltages
Plastic DIP (P) With Copper Lead Frame Provides Cooler Operation and Improved Reliability
Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
PDF Datasheet:
| Mfr Package Description | 0.300 INCH, HERMETIC SEALED, CERAMIC, DIP-8 |
| Status | ACTIVE |
| Technology | BIPOLAR |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Finish | NOT SPECIFIED |
| Terminal Position | DUAL |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Temperature Grade | MILITARY |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Supply Voltage1-Max (Vsup) | 5.5 V |
| Supply Voltage1-Min (Vsup) | 4.5 V |
| Supply Voltage1-Nom (Vsup) | 5 V |
| Interface IC Type | AND GATE BASED PRPHL DRVR |
| Turn-on Time (ton) | 0.0250 us |
| Turn-off Time (toff) | 0.0250 us |
| Output Current Flow Direction | SINK |
| Output Peak Current Limit-Nom | 0.5000 A |
