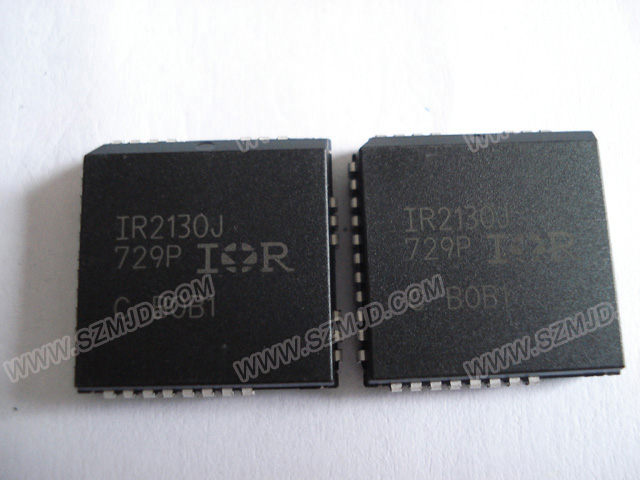

IR IR2130J IC DRIVER BRIDGE 3-PHASE 44-PLCC
| Part number | Brand | Date | QTY | Package | Remarks |
| IR2130J | IR | 14+ROHS | 7500 | PLCC-44 |
Original have in stock |
Specification
| Datasheet | IR2130J |
|---|---|
| Configuration | 3 Phase Bridge |
| Input Type | Inverting |
| Delay Time | 675ns |
| Current - Peak | 200mA |
| Number of Configurations | 1 |
| Number of Outputs | 3 |
| High Side Voltage - Max (Bootstrap) | 600V |
| Voltage - Supply | 10 V ~ 20 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 44-PLCC (32 Leads) |
