BCM5325EKQMG BCM5325 DATACOM, ETHERNET TRANSCEIVER

BCM5325EKQMG BCM5325 DATACOM, ETHERNET TRANSCEIVER

Feature

• The highest level of silicon integration achieved for a five-port

10/100 Ethernet switch device

• Fourth generation switch on a chip

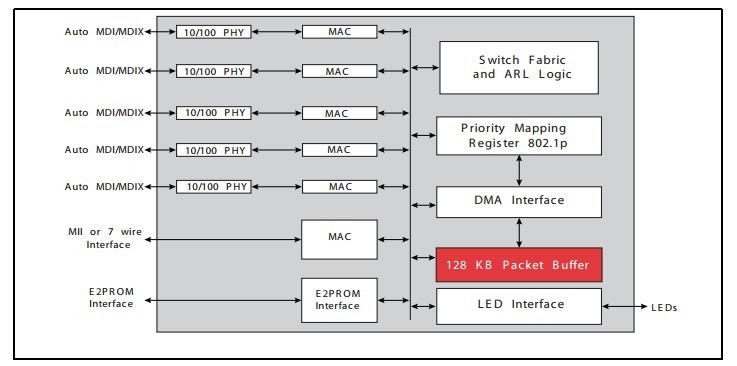

• The BCM5325 integrates:

• Five transceivers (802.3u compliant)

• Six media access controllers (802.x compliant)

• 128-KB packet buffer

• Non-blocking switch fabric

• Packet classification 802.1p QoS priority queues

• Port-based VLAN

• MII or 7-wire interface supports an additional 100FX or 100TX

connection enabling a sixth user connection or uplink

• Supports up to 2K MAC addresses

• Flow control: full-duplex (802.3x) and half-duplex options supported

• Supports automatic address learning and aging

• Internal oscillator circuit

• Typical power consumption: < 1.4W

• 128-pin PQFP package

OVERVIEW
