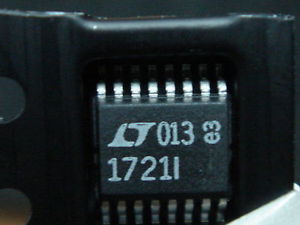

LT LT1721IGN LT1721 Single Supply 3V/5V Comparators New in Stock
| Part number | Brand | Date | QTY | Package | Remarks |
| LT1721IGN | LT | 14+ROHS | 7500 | SSOP-16 |
Original have in stock |
FEATURES
■ UltraFast: 4.5ns at 20mV Overdrive
7ns at 5mV Overdrive
■ Low Power: 4mA per Comparator
■ Optimized for 3V and 5V Operation
■ Pinout Optimized for High Speed Ease of Use
■ Input Voltage Range Extends 100mV Below Negative Rail
■ TTL/CMOS Compatible Rail-to-Rail Outputs
■ Internal Hysteresis with Specified Limits
■ Low Dynamic Current Drain; 15µA/(V-MHz),
Dominated by Load In Most Circuits
APPLICATIONS
■ High Speed Differential Line Receiver
■ Crystal Oscillator Circuits
■ Window Comparators
■ Threshold Detectors/Discriminators
■ Pulse Stretchers
■ Zero-Crossing Detectors
■ High Speed Sampling Circuits
| Datasheet | LT1721IGN |
|---|---|
| Type | General Purpose |
| Number of Elements | 4 |
| Output Type | CMOS, Rail-to-Rail, TTL |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 6 V |
| Voltage - Input Offset (Max) | 3mV @ 5V |
| Current - Input Bias (Max) | 6µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 7mA |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 10ns |
| Hysteresis | 7mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |

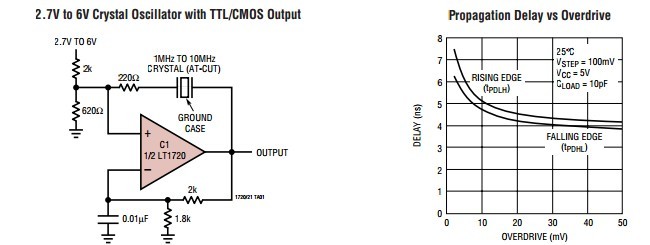

TYPICAL APPLICATION
