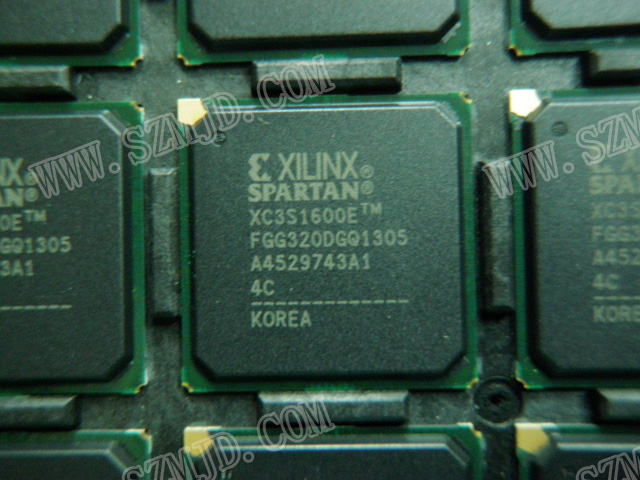

XILINX XC3S1600E-4FG320C XC3S1600E Programmable Logic ICs

Mfr Package Description

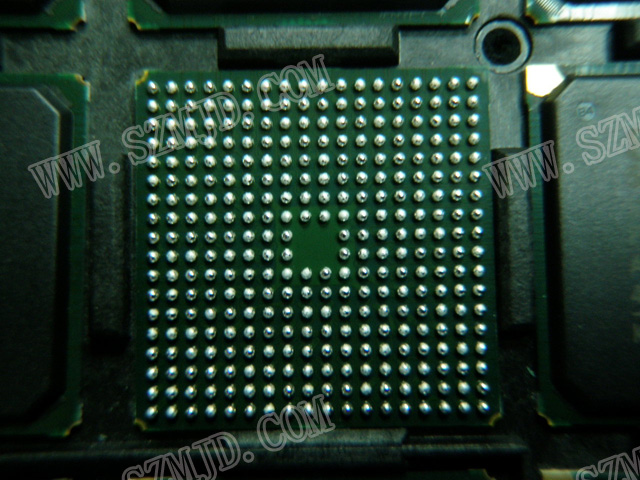

19 X 19 MM, 2 MM HEIGHT, 1 MM PITCH, FBGA-320

Status

ACTIVE

Technology

CMOS

Package Shape

SQUARE

Package Style

GRID ARRAY

Surface Mount

Yes

Terminal Form

BALL

Terminal Pitch

1 mm

Terminal Finish

TIN LEAD

Terminal Position

BOTTOM

Number of Functions

1

Number of Terminals

320

Package Body Material

PLASTIC/EPOXY

Temperature Grade

OTHER

Organization

3688 CLBS, 1600000 GATES

Operating Temperature-Max

85 Cel

Operating Temperature-Min

0.0 Cel

Supply Voltage-Max (Vsup)

1.26 V

Supply Voltage-Min (Vsup)

1.14 V

Supply Voltage-Nom (Vsup)

1.2 V

Clock Freq-Max (fclk)

572 MHz

Number of CLBs

3688

Programmable Logic Type

FIELD PROGRAMMABLE GATE ARRAY

Number of Equivalent Gates

1.60E6

Combinatorial Delay of a

CLB-Max

0.7600 ns
