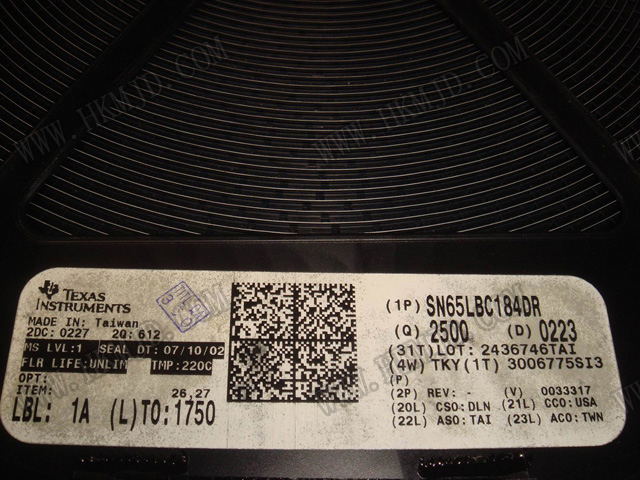

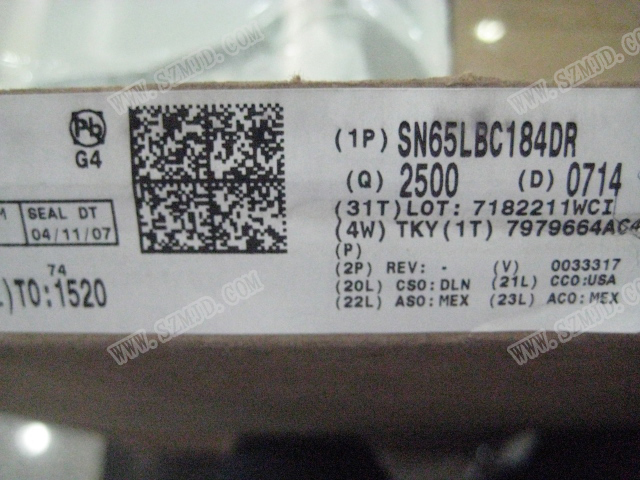

TI SN65LBC184D SN65LBC184 DIFFERENTIAL TRANSCEIVER
| Part number | Brand | Date | QTY | Package | Remarks |
| SN65LBC184D | TI | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
Feature
Integrated Transient Voltage Suppression
ESD Protection for Bus Terminals Exceeds:
±30 kV IEC 61000-4-2, Contact Discharge
±15 kV IEC 61000-4-2, Air-Gap Discharge
±15 kV EIA/JEDEC Human Body Model
Circuit Damage Protection of 400-W Peak
(Typical) Per IEC 61000-4-5
Controlled Driver Output-Voltage Slew
Rates Allow Longer Cable Stub Lengths
250-kbps in Electrically Noisy
Environments
Open-Circuit Fail-Safe Receiver Design
1/4 Unit Load Allows for 128 Devices
Connected on Bus
Thermal Shutdown Protection
Power-Up/-Down Glitch Protection
Each Transceiver Meets or Exceeds the
Requirements of TIA/EIA-485 (RS-485) and
ISO/IEC 8482:1993(E) Standards
Low Disabled Supply Current 300 µA Max
Pin Compatible With SN75176
Applications:
− Industrial Networks
− Utility Meters
− Motor Control
| Datasheet | SN65LBC184D |
|---|---|
| Type | Transceiver |
| Protocol | RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70mV |
| Data Rate | 250kbps |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
