NXP LPC1114FHN33 LPC1114 ARM Cortex-M0 microcontroller

NXP LPC1114FHN33  LPC1114 ARM Cortex-M0 microcontroller

Features and benefits

ARM Cortex-M0 processor, running at frequencies of up to 50 MHz

ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC)

Serial Wire Debug

System tick timer

32 kB on-chip flash programming memory

8 kB SRAM (LPC1114FHN33/30x)

4 kB SRAM (LPC1114FHN33/20x)

In-System Programming (ISP) and In-Application Programming (IAP)

28 General Purpose I/O (GPIO) pins with configurable pull-up/-down resistors

High-current output driver (20 mA) on one pin

Programmable WatchDog Timer (WDT)

10-bit ADC with input multiplexing among 8 pins

UART with fractional baud rate generation

One SPI controller with SSP features and FIFO and multi-protocol capabilities

I²C-bus interface supporting full I²C-bus specification and Fast-mode Plus

Integrated PMU (Power Management Unit) to minimize power consumption

Power profiles residing in boot ROM (LPC1100Land LPC1100XL series only)

Unique device serial number for identification

Single 3.3 V power supply (1.8 V to 3.6 V)

Applications

eMetering

Alarm systems

Lighting

White goods

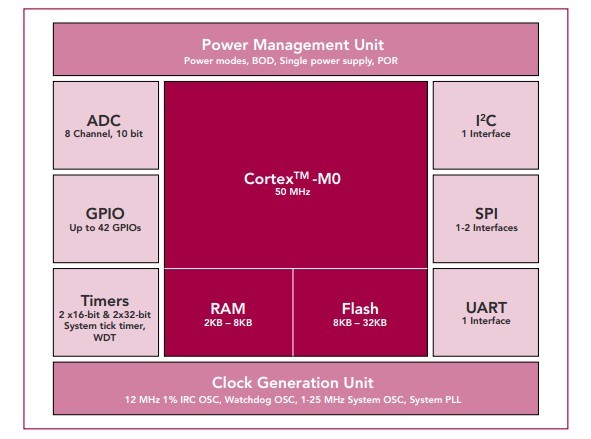

block diagram
