AD9119BBCZ AD9119 RF Digital-to-Analog Converter New and original in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| AD9119BBCZ | AD | 14+ROHS | 7500 | LFBGA-160 |
Original have in stock |
FEATURES
DAC update rate: up to 5.6 GSPS
Direct RF synthesis at 2.8 GSPS data rate
DC to 1.4 GHz in baseband mode
DC to 1.0 GHz in 2× interpolation mode
1.4 GHz to 4.2 GHz in Mix-Mode
Bypassable 2× interpolation
Excellent dynamic performance
Supports DOCSIS 3.0 wideband ACLR/harmonic performance
8 QAM carriers: ACLR > 65 dBc
Industry-leading single/multicarrier IF or RF synthesis
4-carrier W-CDMA ACLR at 2457.6 MSPS
fOUT = 900 MHz, ACLR = 71 dBc (baseband mode)
fOUT = 2100 MHz, ACLR = 68 dBc (Mix-Mode)
fOUT = 2700 MHz, ACLR = 67 dBc (Mix-Mode)
Dual-port LVDS and DHSTL data interface
Up to 1.4 GSPS operation
Source synchronous DDR clocking with parity bit
Low power: 1.0 W at 2.8 GSPS (1.3 W at 5.6 GSPS)
APPLICATIONS
Broadband communications systems CMTS/VOD
Wireless infrastructure: W-CDMA, LTE, point-to-point
Instrumentation, automatic test equipment (ATE) Radars, jammers
| Datasheet | AD9119BBCZ |
|---|---|
| Settling Time | 13ns |
| Number of Bits | 11 |
| Data Interface | LVDS, Serial, SPI™ |
| Number of Converters | 1 |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 160-LFBGA, CSPBGA |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Number of Outputs and Type | 2 Current |
| Sampling Rate (Per Second) | 5.6G |

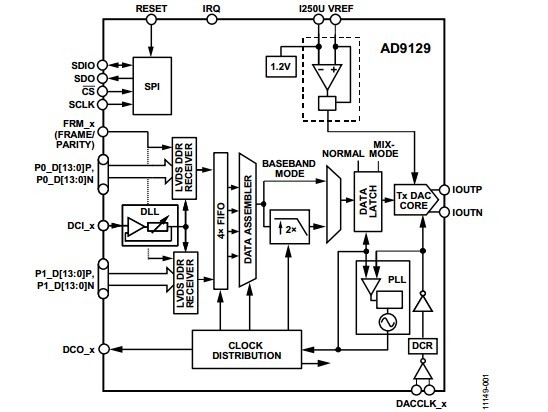

FUNCTIONAL BLOCK DIAGRAM
Shen Zhen Mingjiada electronic.Co.,ltd.
