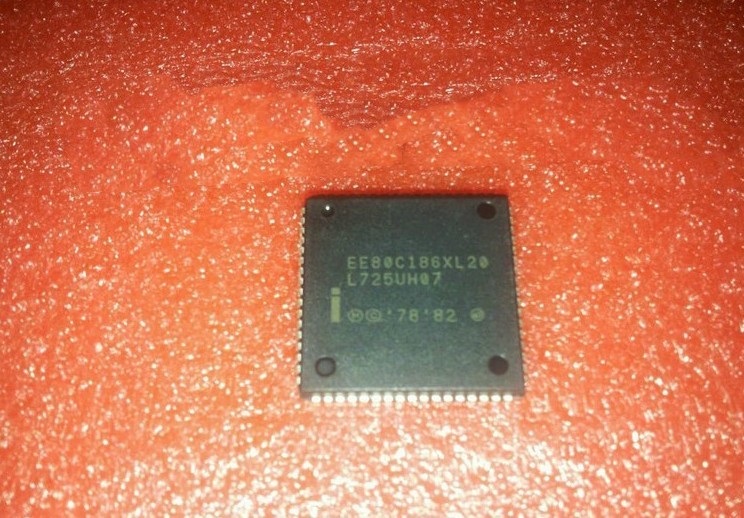

INTEL EE80C186XL20 EE80C186XL 16-Bit Microcontroller New in stock

INTEL EE80C186XL20 EE80C186XL 16-Bit Microcontroller New in stock

Feature

Low Power, Fully Static Versions of 80C186/80C188

Operation Modes:

Enhanced Mode

DRAM Refresh Control Unit

Power-Save Mode

Direct Interface to 80C187

(80C186XL Only)

Compatible Mode

NMOS 80186/80188 Pin-for-Pin

Replacement for Non-Numerics

Applications

Integrated Feature Set

Static, Modular CPU

Clock Generator

2 Independent DMA Channels

Programmable Interrupt Controller

3 Programmable 16-Bit Timers

Dynamic RAM Refresh Control Unit

Programmable Memory and

Peripheral Chip Select Logic

Programmable Wait State Generator

Local Bus Controller

Power-Save Mode

System-Level Testing Support (High

Impedance Test Mode)

Completely Object Code Compatible

with Existing 8086/8088 Software and

Has 10 Additional Instructions over 8086/8088

Speed Versions Available

25 MHz (80C186XL25/80C188XL25)

20 MHz (80C186XL20/80C188XL20)

12 MHz (80C186XL12/80C188XL12)

Direct Addressing Capability to

1 MByte Memory and 64 Kbyte I/O

Available in 68-Pin:

Plastic Leaded Chip Carrier (PLCC)

Ceramic Pin Grid Array (PGA)

Ceramic Leadless Chip Carrier

(JEDEC A Package)

Available in 80-Pin:

Quad Flat Pack (EIAJ)

Shrink Quad Flat Pack (SGFP)

Available in Extended Temperature

Range (b40§C to a85§C)

Datasheet	EE80C186XL20
Core Processor	80C186
Number of Cores/Bus Width	1 Core, 16-Bit
Speed	20MHz
Co-Processors/DSP	Math Engine; 80C187
RAM Controllers	DRAM
Graphics Acceleration	No
Display & Interface Controllers	-
Ethernet	-
SATA	-
USB	-
Voltage - I/O	5.0V
Operating Temperature	0°C ~ 70°C
Security Features	-
Package / Case	68-LCC (J-Lead)


Shen Zhen Mingjiada electronic.Co.,ltd.
