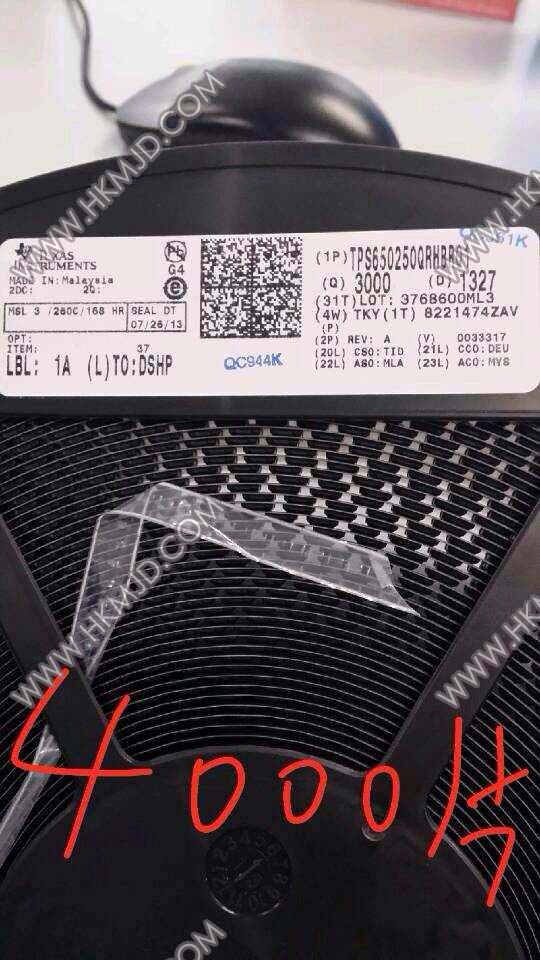

TPS650250QRHBRQ1 TPS650250 POWER MANAGEMENT IC
| Part number | Brand | Date | QTY | Package | Remarks |
| TPS650250QRHBRQ1 | TI | 14+ROHS | 7500 | QFN-32 |
Original have in stock |
FEATURES
• Qualified for Automotive Applications
• 1.6A, 97% Efficient Step-Down Converter for
– 3.3V or 2.8V or Adjustable
• 0.8A, up to 95% Efficient Step-Down Converter Core
for Memory Voltage (VDCDC2)
– 1.8V or 2.5V or Adjustable
• 0.8A, 90% Efficient Step-Down Converter for
Processor Core (VDCDC3)
• Adjustable Output Voltage on VDCDC3
• 30mA LDO for Vdd_alive
• 2 × 200mA General Purpose LDOs (LDO1 and
System Voltage (VDCDC1) LDO2)
• Dynamic Voltage Management for Processor
• LDO1 and LDO2 Voltage Externally Adjustable
• Separate Enable Pins for Inductive Converters
• 2.25MHz Switching Frequency
• 85mA Quiescent Current
• Thermal Shutdown Protection
| Datasheet | TPS650250QRHBRQ1 |
|---|---|
| Packaging | Digi-Reel® |
| Function | Power Management |
| Battery Chemistry | Li-Ion, Li-Pol |
| Voltage - Supply | 2.5 V ~ 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
