S29GL128N11TFI020 S29GL128N11 3.0 Volt-only Page Mode Flash
| Part number | Brand | Date | QTY | Package | Remarks |
| S29GL128N11TFI020 | SPANSION | 14+ROHS | 7500 | TSSOP-56 |
Original have in stock |
PDF Datasheet：
Specifications：
|
Mfr Package Description |
LEAD FREE, MO-142EC, TSOP-56 |
|
Lead Free |
Yes |
|
EU RoHS Compliant |
Yes |
|
China RoHS Compliant |
Yes |
|
Status |
DISCONTINUED |
|
Technology |
CMOS |
|
Package Shape |
RECTANGULAR |
|
Package Style |
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
|
Surface Mount |
Yes |
|
Terminal Form |
GULL WING |
|
Terminal Pitch |
0.5000 mm |
|
Terminal Finish |
MATTE TIN |
|
Terminal Position |
DUAL |
|
Number of Functions |
1 |
|
Number of Terminals |
56 |
|
Package Body Material |
PLASTIC/EPOXY |
|
Temperature Grade |
INDUSTRIAL |
|
Memory Width |
16 |
|
Organization |
8M X 16 |
|
Memory Density |
1.34E8 deg |
|
Operating Mode |
ASYNCHRONOUS |
|
Number of Words |
8.39E6 words |
|
Number of Words Code |
8M |
|
Alternate Memory Width |
8 |
|
Operating Temperature-Max |
85 Cel |
|
Operating Temperature-Min |
-40 Cel |
|
Supply Voltage-Max (Vsup) |
3.6 V |
|
Supply Voltage-Min (Vsup) |
2.7 V |
|
Supply Voltage-Nom (Vsup) |
3 V |
|
Memory IC Type |
FLASH 3V PROM |
|
Parallel/Serial |
PARALLEL |
|
Access Time-Max (tACC) |
110 ns |

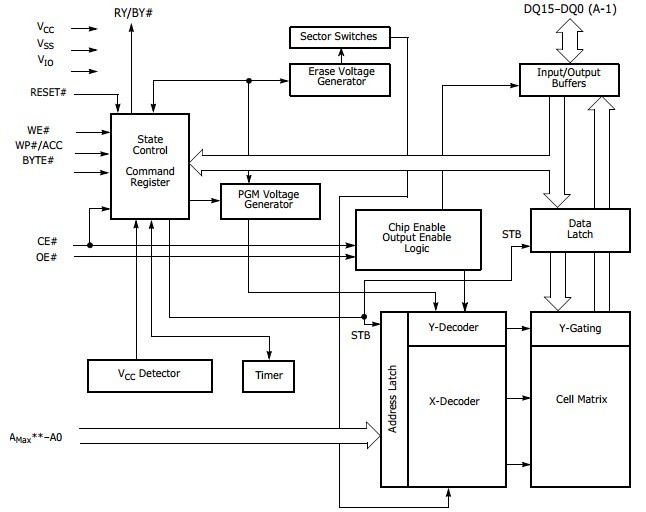

Block Diagram
