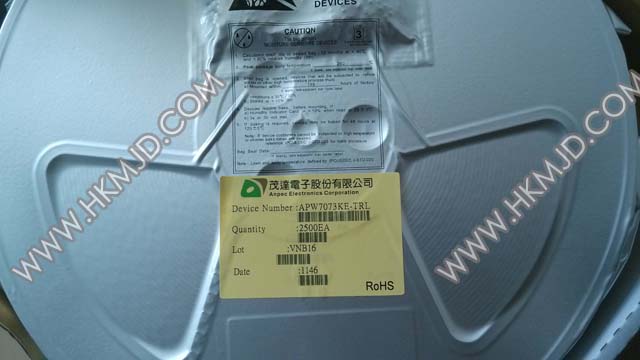

ANPEC APW7073KE APW7073 PWM Controller New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| APW7073KE | ANPEC | 14+ROHS | 7500 | TO-252 |
Original have in stock |
Features
• Single 12V Power Supply Required
• 0.6V Reference with 1% Accurate
• Shutdown and Soft-start Function
• Programmable Frequency Range
from 50 kHz to 1000kHz
• Voltage Mode PWM Control Design
• Up to 100% Duty Cycle
• Under-Voltage Protection
• Over-Current Protection
• SOP-14, QFN-16 Packages
• Lead Free Available (RoHS Compliant)
Specification
|
Mfr Package Description |
LEAD FREE, MS-012AB, SOP-14 |
|
Lead Free |
Yes |
|
EU RoHS Compliant |
Yes |
|
Status |
ACTIVE |
|
Package Shape |
RECTANGULAR |
|
Package Style |
SMALL OUTLINE |
|
Surface Mount |
Yes |
|
Terminal Form |
GULL WING |
|
Terminal Pitch |
1.27 mm |
|
Terminal Finish |
MATTE TIN |
|
Terminal Position |
DUAL |
|
Number of Functions |
1 |
|
Number of Terminals |
14 |
|
Package Body Material |
PLASTIC/EPOXY |
|
Temperature Grade |
OTHER |
|
Control Mode |
VOLTAGE |
|
Control Technique |
PULSE WIDTH MODULATION |
|
Input Voltage-Nom |
12 V |
|
Output Current-Max |
30 A |
|
Analog IC - Other Type |
SWITCHING CONTROLLER |
|
Switcher Configuration |
PUSH-PULL |
|
Input Voltage Limit-Max |
13.2 V |
|
Input Voltage Limit-Min |
2.2 V |
|
Switching Frequency-Max |
1000 kHz |
|
Operating Temperature-Max |
70 Cel |
|
Operating Temperature-Min |
-20 Cel |
