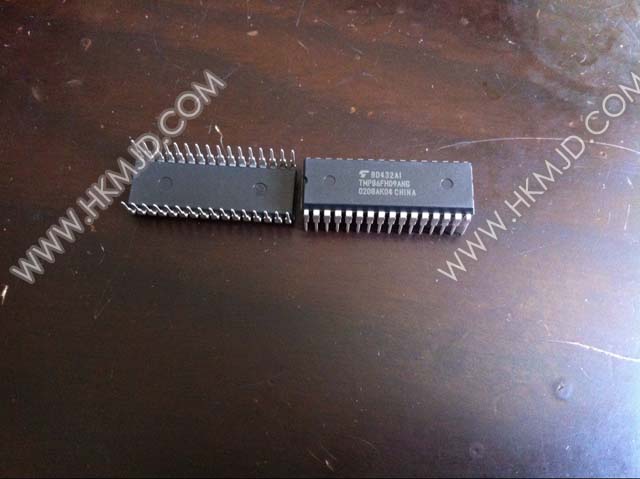

TOSHIBA TMP86FH09ANG TMP86FH09 8 Bit Microcontroller
Part number | Brand | Date | QTY | Package | Remarks |

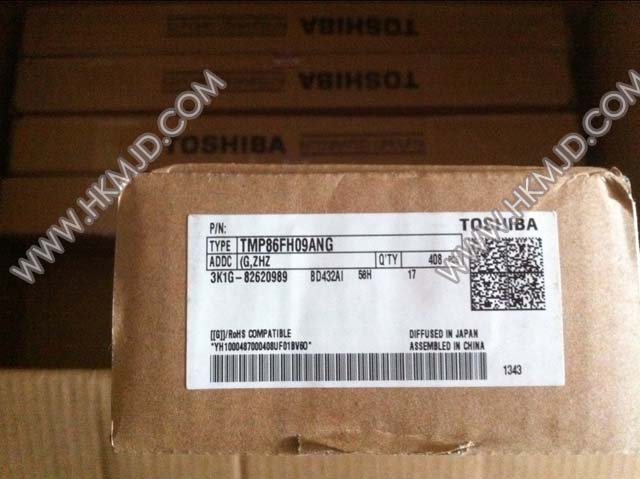

TMP86FH09ANG | TOSHIBA | 14+ROHS | 7500 | DIP-32 |
Original have in stock |
Features
8-bit single chip microcomputer TLCS-870/C series
- Instruction execution time :
0.25 µs (at 16 MHz)
122 µs (at 32.768 kHz)
- 132 types & 731 basic instructions
17interrupt sources (External : 5 Internal : 12)
Input / Output ports (26 pins)
Large current output: 8pins (Typ. 20mA), LED direct drive
Prescaler
- Time base timer
- Divider output function
Watchdog Timer
16-bit timer counter: 1 ch
- Timer, External trigger, Window, Pulse width measurement,
Event counter, Programmable pulse generate (PPG) modes
8-bit timer counter : 2 ch
- Timer, Event counter, Programmable divider output (PDO)
Pulse width modulation (PWM) output,
Programmable pulse generation (PPG) modes
8-bit UART : 1 ch
8bit Serial Expansion Interface (SEI): 1 channel
(MSB/LSB selectable and max. 4Mbps at 16MHz)
10-bit successive approximation type AD converter
- Analog input: 6 ch
Key-on wakeup : 4 channels
Clock operation
Single clock mode
Dual clock mode
Low power consumption operation
STOP mode: Oscillation stops. (Battery/Capacitor back-up.)
SLOW1 mode: Low power consumption operation using low-frequency clock.(High-frequency clock
stop.)
SLOW2 mode: Low power consumption operation using low-frequency clock.(High-frequency clock
oscillate.)
IDLE0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using high frequency clock. Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
IDLE1 mode: CPU stops and peripherals operate using high frequency clock. Release by interruputs(CPU restarts).
IDLE2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruputs. (CPU restarts).
SLEEP0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using low frequency clock.Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
SLEEP1 mode: CPU stops, and peripherals operate using low frequency clock. Release by interruput.(CPU restarts).
SLEEP2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by
interruput.
Wide operation voltage:
-4.5V to 5.5V at 16MHz /32.768 kHz
-2.7V to 5.5V at 8MHz /32.768 kHz
