ON NTZD3152PT1G NTZD3152 MOSFET 2P-CH 20V 430MA SOT-563
|
Part number |
Brand | Date | QTY | Package | Remarks |
| NTZD3152PT1G | ON | 14+ROHS | 7500 | SOT-563 |
Original have in stock |
Features
• Low RDS(on) Improving System Efficiency
• Low Threshold Voltage
• ESD Protected Gate
• Small Footprint 1.6 x 1.6 mm
• These are Pb−Free Devices
Applications
• Load/Power Switches
• Power Supply Converter Circuits
• Battery Management
• Cell Phones, Digital Cameras, PDAs, Pagers, etc
| Datasheet | NTZD3152PT1G |
|---|---|
| FET Type | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 430mA |
| Rds On (Max) @ Id, Vgs | 900 mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) @ Vgs | 2.5nC @ 4.5V |
| Input Capacitance (Ciss) @ Vds | 175pF @ 16V |
| Power - Max | 250mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |

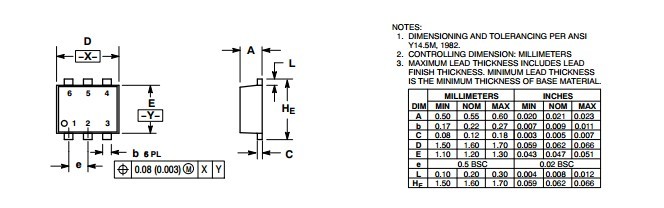

PACKAGE DIMENSIONS
