TI DAC9881SBRGER DAC9881 IC DAC 18-BIT 1CH V-OUT 24-VQFN
| Part number | Brand | Date | QTY | Package | Remarks |
| DAC9881SBRGER | TI | 14+ROHS | 7500 | QFN-24 |
Original have in stock |
FEATURES
• 18-Bit Monotonic Over Temperature Range
• Relative Accuracy: ±2LSB Max Low-Noise: 24nV/√Hz
• Fast Settling: 5µs
• On-Chip Output Buffer Amplifier withRail-to-Rail Operation
• Single Power Supply: +2.7V to +5.5V
• DAC Loading Control Selectable Power-On Reset to Zero-Scale or Midscale
• Power-Down Mode
• Unipolar Straight Binary or Twos Complement Input Mode
• Fast SPI™ Interface with Schmitt-Triggered Inputs: up to 50MHz, 1.8V/3V/5V Logic
• Small Package: QFN-24, 4mm × 4mm
| Datasheet | DAC9881SBRGER |
|---|---|
| Settling Time | 5µs |
| Number of Bits | 18 |
| Data Interface | Serial |
| Number of Converters | 1 |
| Voltage Supply Source | Analog and Digital |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Number of Outputs and Type | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| Sampling Rate (Per Second) | * |
| Other Names | DAC9881SBRGERG4 DAC9881SBRGERG4-ND |

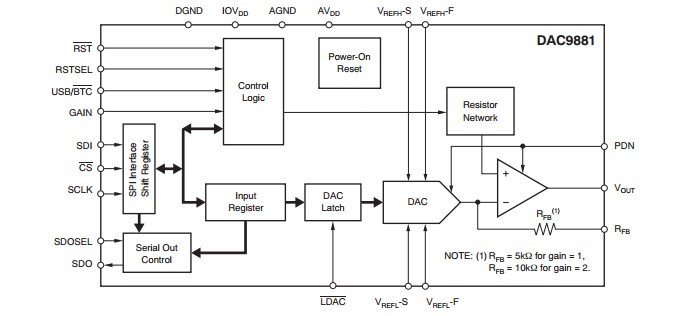

Block Diagram
