FSC FSB32560 Smart Power Module MJD New in stock

FSC FSB32560 Smart Power Module MJD New in stock

PDF：

Features

• UL Certified No.E209204(SPM27-BC package)

• 600V-25A 3-phase IGBT inverter bridge including control ICs

for gate driving and protection

• Divided negative dc-link terminals for inverter current sensing

applications

• Single-grounded power supply due to built-in HVIC

• Isolation rating of 2500Vrms/min.

• Very low leakage current due to using ceramic substrate

Applications

• AC 100V ~ 253V three-phase inverter drive for small power

ac motor drives

• Home appliances applications like air conditioner and washing machine

• Industrial applications like sewing machine

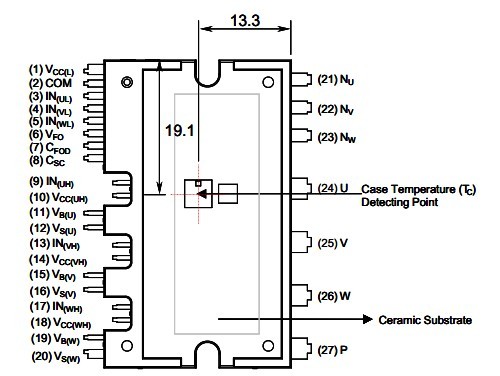

Pin Configuration
