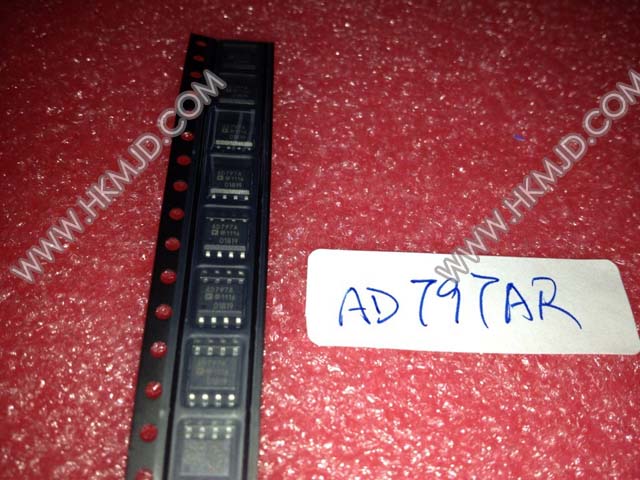

AD797AR AD797 Ultralow Distortion, Ultralow Noise Op Amp New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| AD797AR | AD | 14+ROHS | 7500 | SOP-8 |
Original have in stock |
FEATURES
Low Noise
0.9 nV/√Hz typ (1.2 nV/√Hz max) Input Voltage
Noise at 1 kHz
50 nV p-p Input Voltage Noise, 0.1 Hz to 10 Hz
Low Distortion
–120 dB Total Harmonic Distortion at 20 kHz
Excellent AC Characteristics
800 ns Settling Time to 16 Bits (10 V Step)
110 MHz Gain Bandwidth (G = 1000)
8 MHz Bandwidth (G = 10)
280 kHz Full Power Bandwidth at 20 V p-p
20 V/ms Slew Rate
Excellent DC Precision
80 mV max Input Offset Voltage
1.0 mV/8C VOS Drift
Specified for 65 V and 615 V Power Supplies
High Output Drive Current of 50 mA
APPLICATIONS
Professional Audio Preamplifiers
IR, CCD, and Sonar Imaging Systems
Spectrum Analyzers
Ultrasound Preamplifiers
Seismic Detectors
SD ADC/DAC Buffers
Specification
| Datasheet | AD797AR |
|---|---|
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 20 V/µs |
| Gain Bandwidth Product | 110MHz |
| -3db Bandwidth | 8MHz |
| Current - Input Bias | 250nA |
| Voltage - Input Offset | 25µV |
| Current - Supply | 8.2mA |
| Current - Output / Channel | 50mA |
| Voltage - Supply, Single/Dual (±) | ±5 V ~ 15 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
