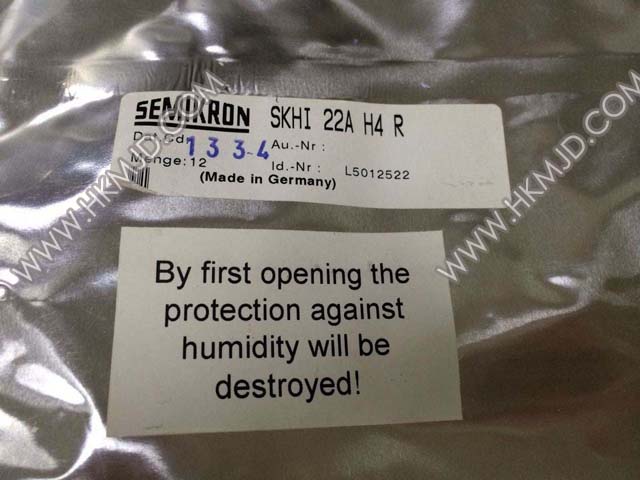

Semikron SKHI22AH4R Hybrid Dual IGBT Driver MJD new and original have in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| SKHI22AH4R | Semikron | 14+ROHS | 7500 | IGBT |
Original have in stock |
PDF Datasheet:
Specification:
|
Status |
ACTIVE |
|
Package Shape |
RECTANGULAR |
|
Package Style |
MICROELECTRONIC ASSEMBLY |
|
Terminal Form |
UNSPECIFIED |
|
Terminal Position |
UNSPECIFIED |
|
Number of Functions |
2 |
|
Package Body Material |
UNSPECIFIED |
|
Temperature Grade |
INDUSTRIAL |
|
Operating Temperature-Max |
85 Cel |
|
Operating Temperature-Min |
-40 Cel |
|
Supply Voltage1-Max (Vsup) |
15.6 V |
|
Supply Voltage1-Min (Vsup) |
14.4 V |
|
Supply Voltage1-Nom (Vsup) |
15 V |
|
Interface IC Type |
HALF BRIDGE BASED PRPHL DRVR |
|
Turn-on Time (ton) |
1.15 us |
|
Built-in Protections |
TRANSIENT; OVER CURRENT; UNDER VOLTAGE |
|
Turn-off Time (toff) |
1.15 us |
|
Output Current Flow Direction |
SOURCE AND SINK |
