Microsemi APT94N65B2C3G APT94N65B2C3 Super Junction MOSFET
| Part number | Brand | Date | QTY | Package | Remarks |
| APT94N65B2C3G | Microsemi | 14+ROHS | 7500 | TO-247 |
Original have in stock |
Specification
| Datasheet | APT94N65B2C3G |
|---|---|
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25°C | 94A (Tc) |
| Rds On (Max) @ Id, Vgs | 35 mOhm @ 47A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 5.8mA |
| Gate Charge (Qg) @ Vgs | 580nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 13940pF @ 25V |
| Power - Max | 833W |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | T-MAX™ [B2] |

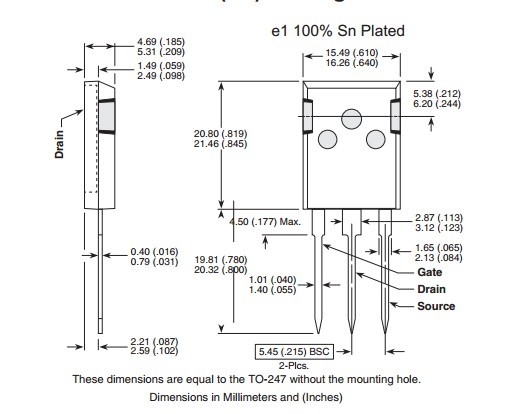

Package Outline
MJD is a corporation which engaged in agency electronic components. MJD Through seventeen years unrimitting efforts, aspire to provide our customers with world-leading products and service. Now already became a one of the most famous electronic components distributor in China.
