Freescale MC34713EP MC34713 5.0 A 1.0MHz Fully Integrated Single Switch-Mode Power Supply New in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| MC34713EP | Freescale | 14+ROHS | 7500 | QFN-24 |
Original have in stock |
Features
• 45 mΩ Integrated N-Channel Power MOSFETs
• Input Voltage Operating Range from 3.0 V to 6.0 V
• ±1 % Accurate Output Voltage, Ranging from 0.7 V to 3.6 V
• Voltage Tracking Capability in different configurations.
• Programmable Switching Frequency Range from 200 kHz to
1.0 MHz with a default of 1.0 MHz
• Programmable Soft Start Timing
• Over Current Limit and Short Circuit Protection
• Thermal Shutdown
• Output Overvoltage and Undervoltage Detection
• Active Low Power Good Output Signal
• Active Low Shutdown Input
• Pb-Free Packaging Designated by Suffix Code EP.
Specification
| Datasheet | MC34713EP |
|---|---|
| Packaging | Tray |
| Applications | Converter, DDR |
| Voltage - Input | 3 V ~ 6 V |
| Number of Outputs | 1 |
| Voltage - Output | 0.7 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN-EP (4x4) |

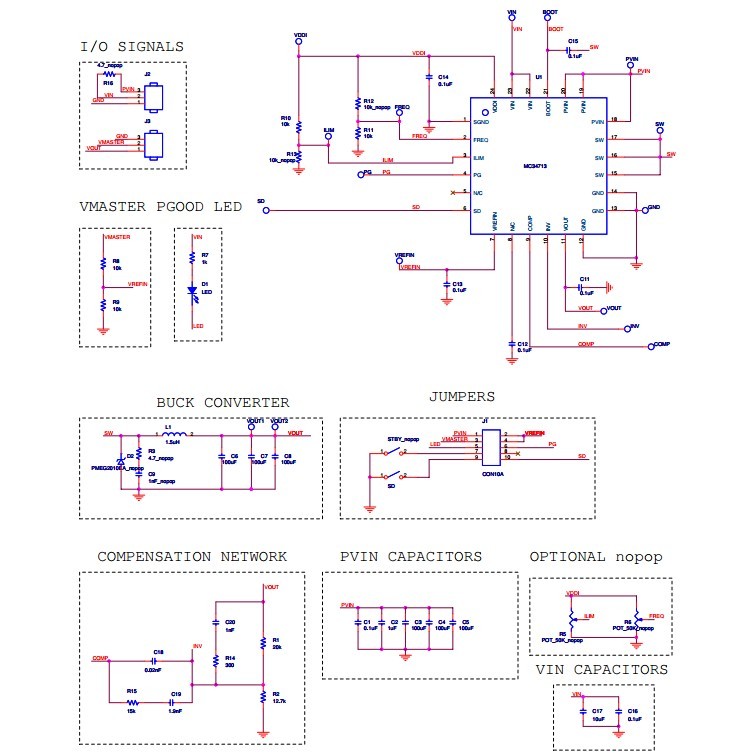

TYPICAL APPLICATIONS
