FSCFGP20N60UFDTUFGP20N60UFD 600V, 20A Field Stop IGBT MJD have large stock
| Part number | Brand | Date | QTY | Package | Remarks |
| FGP20N60UFDTU | FSC | 14+ROHS | 7500 | TO-220 |
Original have in stock |
Features
• High current capability
• Low saturation voltage: VCE(sat) =1.8V @ IC = 20A
• High input impedance
• Fast switching
• RoHS compliant
Applications
• Induction Heating, UPS, SMPS, PFC
Specification
| Datasheet | FGP20N60UFDTU |
|---|---|
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 40A |
| Current - Collector Pulsed (Icm) | 60A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 20A |
| Power - Max | 165W |
| Switching Energy | 380µJ (on), 260µJ (off) |
| Input Type | Standard |
| Gate Charge | 63nC |
| Td (on/off) @ 25°C | 13ns/87ns |
| Test Condition | 400V, 20A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | 35ns |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |

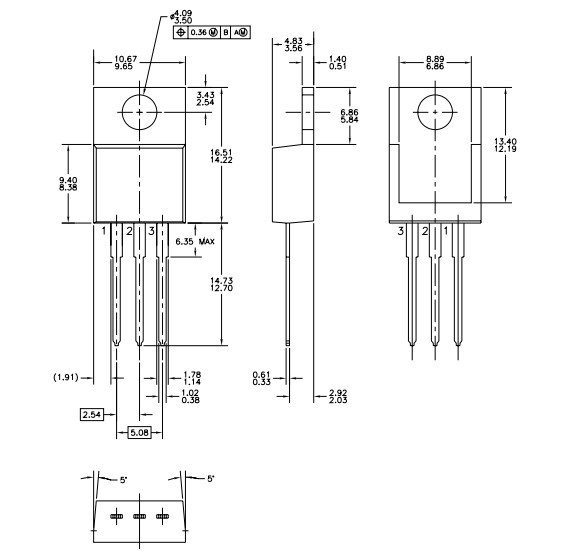

Mechanical Dimensions
