BCM3380DKFSBG BCM3380 3.0-Based Silicon Solution

BROADCOM BCM3380DKFSBG BCM3380 3.0-Based Silicon Solution New and original have in stock

 Full Name：Broadcom Corporation

The BCM3380 is the industry's first fully integrated solution for DOCSIS/EuroDOCSIS 3.0 applications. With advanced support for eight downstream channels, the BCM3380 is the world's fastest cable modem SoC enabling cable operators to deliver competitive high-speed services. The BCM3380 integrates all of the necessary functionality to enable cost-optimized solutions for data modems, eMTAs, gateways, media servers, and fixed mobile convergence platforms.

Delivering over 1000 DMIPS, the advanced VIPER™ processor and the four independent hardware assist engines deliver unmatched packet processing power. With total capability of over 500 kpps, the BCM3380 enables line speed rates, maximizes the eight downstream and four upstream channels of DOCSIS/EuroDOCSIS 3.0, with plenty of processing power to handle gateway and other advanced applications such as WiFi or VoIP.

Feature

DOCSIS®/EuroDOCSIS™ 3.0 compliant MAC

• Eight channels downstream

• Four channels upstream

• Integrated octal demod and quad modulator

Integrated 64-MHz wideband receiver

• Two independent 32-MHz blocks

• 1-GHz plant support

Integrated quad power amp

Advanced Processor Architecture

• 1000 DMIPS VIPER™ Processor Core

• Four hardware assist engines

• High speed DDR2 interface

• Total processing capability of 500 kpps

Integrated IPTV Solution

• Complete QAM to IP processing on chip

• Hardware MPEG to IP conversion engine

• Dedicated connectivity to IP-STB

Complete set of advanced peripheral interfaces

• Two USB 2.0 Host/Device ports with integrated PHY

• Two 10/100/1000 Mbps Ethernet ports with EthernetAV, 1 with

integrated PHY

• One PCI Express® interface

• Two SIM card interfaces for fixed mobile convergence

Advanced VoIP Subsystem

• 2-line Audio Processing Module with integrated codec and HVG

• Direct interface to low-cost external dual SLIC • PCM interface for expansion beyond two voice lines

• Battery Management Unit

• CablexChange® software support

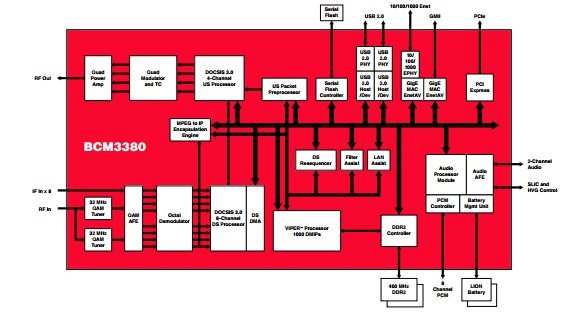

Block Diagram
