RDA5802NS SINGLE-CHIP BROADCAST FM RADIO TUNER

RDA RDA5802NS SINGLE-CHIP BROADCAST FM RADIO TUNER New in stock

Features

CMOS single-chip fully-integrated FM tuner

Low power consumption

Total current consumption lower than 20mA at 3.0V power supply when under normal situation

Support worldwide frequency band

50 -115 MHz

Support flexible channel spacing mode

100KHz, 200KHz, 50KHz and 25KHz

Support RDS/RBDS

Digital low-IF tuner

Image-reject down-converter

High performance A/D converter

IF selectivity performed internally

Fully integrated digital frequency synthesizer

Fully integrated on-chip RF and IF VCO

Fully integrated on-chip loop filter

Autonomous search tuning

Support 32.768KHz crystal oscillator

Digital auto gain control (AGC)

Digital adaptive noise cancellation

Mono/stereo switch

Soft mute

High cut

Programmable de-emphasis (50/75 s)

Receive signal strength indicator (RSSI) and SNR

Bass boost

Volume control and mute

I2S digital output interface

Line-level analog output voltage

32.768 KHz 12M,24M,13M,26M,19.2M,38.4MHz Reference clock

Only support 2-wire bus interface

Directly support 32Ω resistance loading

Integrated LDO regulator

1.8 to 5.5 V operation voltage

Support QFN 4X4mm 24pins, QFN 3X3mm 20pins and

QFN 2x2mm 12pins three package types.

Applications

Cellular handsets

MP3, MP4 players

Portable radios

PDAs, Notebook

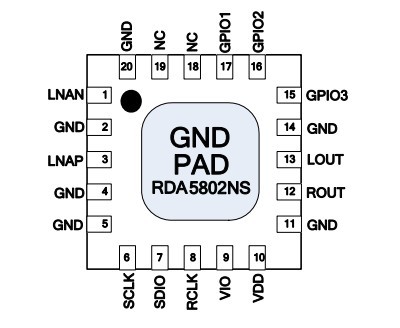

Pins Description
