TI DS64MB201SQE DS64MB201 Dual Lane 2:1/1:2 Mux/Buffer with Equalization and De-Emphasis have large stock
| Part number | Brand | Date | QTY | Package | Remarks |
| DS64MB201SQE | TI | 14+ROHS | 7500 | QFN |
Original have in stock |
Features
■ Up to 6.4 Gbps dual lane 2:1 mux, 1:2 switch or fan-out
■ Adjustable receive equalization up to +33 dB gain
■ Adjustable transmit de-emphasis up to −12 dB
■ Adjustable transmit VOD
■ <0.25 UI of residual DJ at 6.4 Gbps with 40” FR4 trace
■ SATA/SAS: OOB signal pass-through
■ Adjustable electrical IDLE detect threshold
■ Low power
■ Signal conditioning programmable via pin selection or
SMBus interface
■ Single 2.5V supply operation
■ >6 kV HBM ESD Rating
■ 3.3V tolerant SMBus interface
■ High speed signal flow–thru pinout package: 54-pin LLP
(10 mm x 5.5 mm)
Applications
■ SATA (1.5, 3.0 and 6 Gbps)
■ SAS (1.5, 3.0 and 6 Gbps)
■ XAUI (3.125 Gbps), RXAUI (6.25 Gbps)
■ sRIO – Serial Rapid I/O
■ Fibre Channel (4.25 Gbps)
■ 10GBase-CX4, InfiniBand (SDR & DDR)
■ FR-4 backplane traces
| Datasheet | DS64MB201SQE |
|---|---|
| Packaging | Cut Tape (CT) |
| Function | Multiplexer |
| Circuit | 2 x 2:1 |
| On-State Resistance | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply, Single/Dual (±) | 2.5V |
| Current - Supply | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 54-WFQFN Exposed Pad |
| Supplier Device Package | 54-WQFN (10x5.5) |

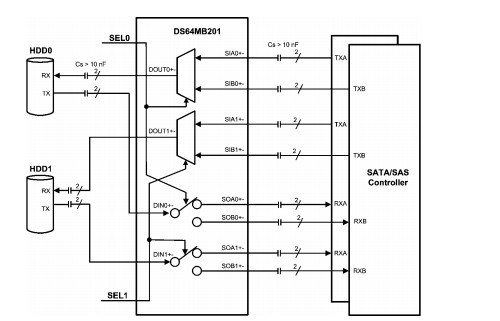

Typical Application
