TI TL5001IDR TL5001 PULSE-WIDTH-MODULATION CONTROL CIRCUITS
| Part number | Brand | Date | QTY | Package | Remarks |
| TL5001IDR | TI | 14+ROHS | 7500 | SOP |
Original have in stock |
Feature
Complete PWM Power Control
3.6-V to 40-V Operation
Internal Undervoltage-Lockout Circuit
Internal Short-Circuit Protection
Oscillator Frequency. . . 20 kHz to 500 kHz
Variable Dead Time Provides Control Over
Total Range
±3% Tolerance on Reference Voltage(TL5001A)
Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards

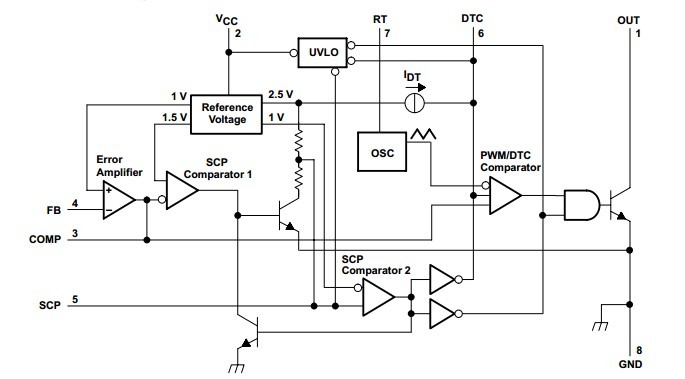

functional block diagram
