AD ADM4073HWRJZ ADM4073 Current-Sense Amplifier
| Part number | Brand | Date | QTY | Package | Remarks |
| ADM4073HWRJZ | AD | 14+ROHS | 7500 | SOT23-6 |
Original have in stock |
PDF Datasheet：
FEATURES
Low cost, compact, current-sense solution
Three available gain versions
20 V/V (ADM4073T)
50 V/V (ADM4073F)
100 V/V (ADM4073H)
Typical ±1.0% full-scale accuracy
500 μA supply current
Wide 1.8 MHz bandwidth
3 V to 28 V operating supply
Wide 2 V to 28 V common-mode range
Independent of supply voltage
Operates from −40°C to +125°C
Available in a 6-lead SOT-23 package
Pin-to-pin compatibility with the MAX4073
APPLICATIONS
Cell phones, PDAs
Notebook computers
Portable/battery-powered systems
Smart battery packs/chargers
Automotive
Power management systems
PA bias control
General system/board-level current monitoring
Precision current sources

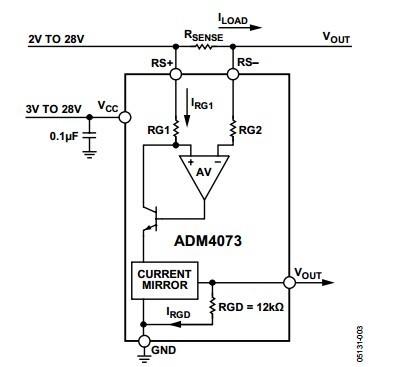

FUNCTIONAL BLOCK DIAGRAM
