MC9328MXLVM20 MC9328MXL Integrated Portable System Processor

FREESCALE MC9328MXLVM20 MC9328MXL Integrated Portable System Processor

Feature：

ARM920Tô Microprocessor Core

AHB to IP Bus Interfaces (AIPIs)

External Interface Module (EIM)

SDRAM Controller (SDRAMC)

DPLL Clock and Power Control Module

Two Universal Asynchronous Receiver/Transmitters (UART 1 and UART 2)

Two Serial Peripheral Interfaces (SPI1 and SPI2)

Two General-Purpose 32-bit Counters/Timers

Watchdog Timer

Real-Time Clock/Sampling Timer (RTC)

LCD Controller (LCDC)

Pulse-Width Modulation (PWM) Module

Universal Serial Bus (USB) Device

Multimedia Card and Secure Digital (MMC/SD) Host Controller Module

Memory StickÆ Host Controller (MSHC)

Direct Memory Access Controller (DMAC)

Synchronous Serial Interface and Inter-IC Sound (SSI/I2S) Module

Inter-IC (I2C) Bus Module

Video Port

General-Purpose I/O (GPIO) Ports

Bootstrap Mode

Multimedia Accelerator (MMA)

Power Management Features

Operating Voltage Range: 1.7 V to 1.98 V core, 1.7 V to 3.3V I/O

256-pin MAPBGA Package

225-pin MAPBGA Package

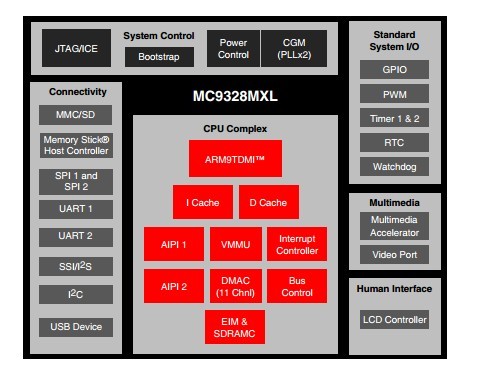

Functional Block Diagram
